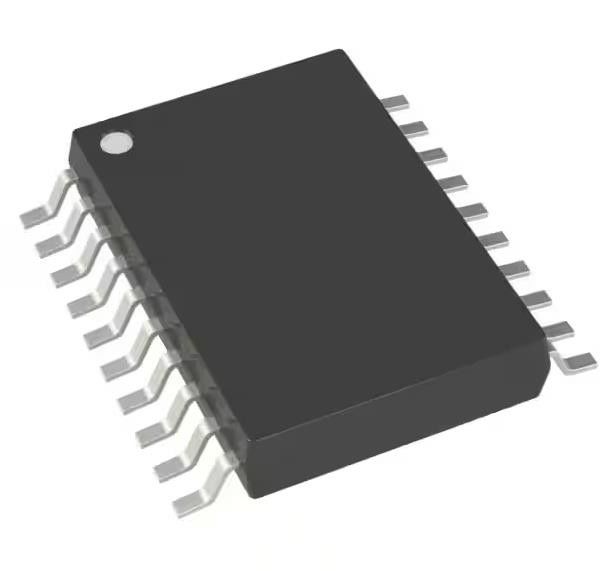

AD7927BRUZ-REEL 12 Bit Analog to Digital Converter 8 Input 1 SAR 20-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD7927BRUZ-REEL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 200k |
|---|---|---|---|
| Number Of Inputs: | 8 | Input Type: | Single Ended |
| Data Interface: | SPI, DSP | Configuration: | MUX-S/H-ADC |
| Ratio - S/H:ADC: | 1:01 | Number Of A/D Converters: | 1 |
| High Light: | AD7927BRUZ-REEL,AD7927BRUZ-REEL Analog to Digital Converter IC,12 Bit Analog to Digital Converter IC |
||
Product Description
AD7927BRUZ-REEL 12 Bit Analog to Digital Converter 8 Input 1 SAR 20-TSSOP
Specifications of AD7927BRUZ-REEL
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | AD7927 |
Features of AD7927BRUZ-REEL
► Fast throughput rate: 200 kSPS
► Specified for AVDD of 2.7 V to 5.25 V
► Low power
► 3.6 mW maximum at 200 kSPS with 3 V supply
► 7.5 mW maximum at 200 kSPS with 5 V supply
► 8 (single-ended) inputs with sequencer
► Wide input bandwidth
► 70 dB minimum SINAD at 50 kHz input frequency
► Flexible power/serial clock speed management
► No pipeline delays
► High speed serial interface SPI-, QSPI™-, MICROWIRE™-, DSPcompatible
► Shutdown mode: 0.5 μA maximum
► 20-lead TSSOP
► Qualified for automotive applications
Applications of AD7927BRUZ-REEL
The AD7927 is a 12-bit, high speed, low power, 8-channel, successive approximation ADC. The part operates from a single 2.7 V to 5.25 V power supply and features throughput rates up to 200 kSPS. The part contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 8 MHz.
Environmental & Export Classifications of AD7927BRUZ-REEL
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
