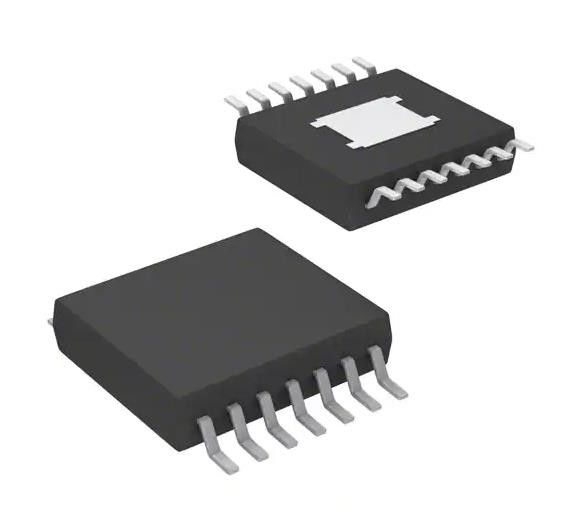

TPS92610QPWPRQ1 LED Driver IC 1 Output Linear PWM Dimming 450mA 14-HTSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS92610QPWPRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Linear | Internal Switch(s): | NO |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Supply (Min): | 4.5V |
| Voltage - Supply (Max): | 40V | Voltage - Output: | 0V ~ 40V |
| Current - Output / Channel: | 450mA | Dimming: | PWM |
| High Light: | TPS92610QPWPRQ1,TPS92610QPWPRQ1 LED Driver IC |
||
Product Description
TPS92610QPWPRQ1 LED Driver IC 1 Output Linear PWM Dimming 450mA 14-HTSSOP
Specifications of TPS92610QPWPRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Linear |
| Topology | - |
| Internal Switch(s) | No |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 40V |
| Voltage - Output | 0V ~ 40V |
| Current - Output / Channel | 450mA |
| Frequency | - |
| Dimming | PWM |
| Applications | Automotive, Lighting |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-HTSSOP |
| Base Product Number | TPS92610 |
Features of TPS92610QPWPRQ1
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level H2
– Device CDM ESD Classification Level C3B
• Functional safety capable
– Documentation available to aid functional safety system design
• Single-Channel Constant-Current LED Driver With PWM Dimming
• Wide Input-Voltage Range: 4.5 V–40 V
• Constant Output Current, Adjustable by Sense Resistor
• Precision Current Regulation, Tolerance ±4.6% Across Junction Temperature –40°C to 150°C
• Maximum Current: 450 mA
• Heat Sharing With External Resistor
Applications of TPS92610QPWPRQ1
• Automotive Convenience Lighting: Dome Light,Door Handles, Reading Lamp, and Miscellaneous Lamps
• Automotive Rear Lamp, Center High-Mounted Stop Lamp, Side Markers, Blind-Spot Detection Indicator, Charging Inlet Indicator
• General-Purpose LED Driver Application
Environmental & Export Classifications of TPS92610QPWPRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
