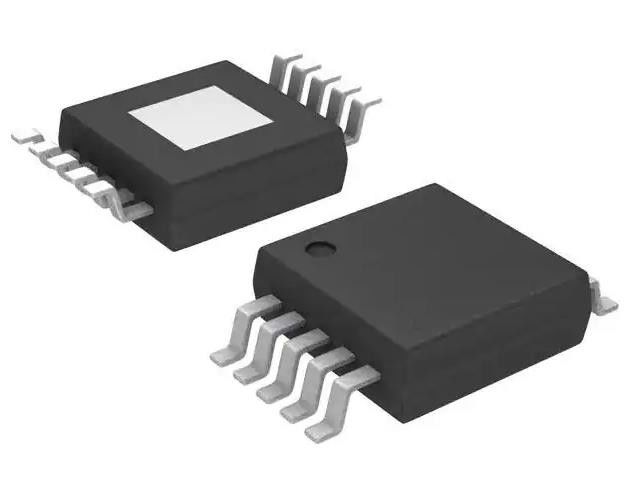

TPS92513DGQR LED Driver IC 1 Output Regulator Step-Down Analog PWM Dimming 1.5A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS92513DGQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | Lighting | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Supply (Min): | 4.5V | Voltage - Supply (Max): | 42V |
| Voltage - Output: | 45V | Current - Output / Channel: | 1.5A |
| Frequency: | 100kHz ~ 2MHz | Dimming: | Analog, PWM |
| High Light: | TPS92513DGQR,TPS92513DGQR LED Driver IC |
||
Product Description
TPS92513DGQR LED Driver IC 1 Output Regulator Step-Down Analog PWM Dimming 1.5A
Specifications of TPS92513DGQR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | DC DC Regulator |
| Topology | Step-Down (Buck) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 42V |
| Voltage - Output | 45V |
| Current - Output / Channel | 1.5A |
| Frequency | 100kHz ~ 2MHz |
| Dimming | Analog, PWM |
| Applications | Lighting |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-HVSSOP |
| Base Product Number | TPS92513 |
Features of TPS92513DGQR
* Integrated 220-mQ High-Side MOSFET
* 4.5-V to 42-V Input Voltage Range(4.5 V to 60 V for the TPS92513HV)
* 0 V to 300 mV Adjustable Voltage Reference
* +5% LED Current Accuracy
* 100-kHz to 2-MHz Switching Frequency Range
* Dedicated PWM Dimming Input
* Adjustable Undervoltage-Lock-Out
* Overcurrent Protection
* Overtemperature Protection
* MSOP-10 Package with PowerPADTM
Applications of TPS92513DGQR
• Street Lighting
• Emergency/Exit Lighting
• General Industrial and Commercial Illumination
• Retail Lighting
• Appliance Lighting
• Transportation Lighting
• Channel Letters
• Light Bars
Environmental & Export Classifications of TPS92513DGQR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
