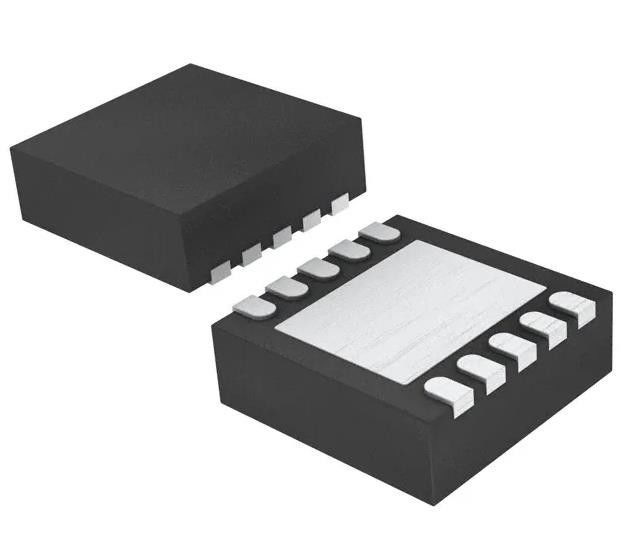

TPS65631WDSKR Converter AMOLED Display Voltage Regulator IC 2 Output 10-SON
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS65631WDSKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | Converter, AMOLED Display | Voltage - Input: | 2.9V ~ 4.5V |
|---|---|---|---|
| Number Of Outputs: | 2 | Voltage - Output: | 4.6V, -1.4V ~ -4.4V |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
| High Light: | TPS65631WDSKR,TPS65631WDSKR Voltage Regulator IC,AMOLED Display Voltage Regulator IC |
||
Product Description
TPS65631WDSKR Converter AMOLED Display Voltage Regulator IC 2 Output 10-SON
Specifications of TPS65631WDSKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Special Purpose Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Applications | Converter, AMOLED Display |
| Voltage - Input | 2.9V ~ 4.5V |
| Number of Outputs | 2 |
| Voltage - Output | 4.6V, -1.4V ~ -4.4V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-SON (2.5x2.5) |
| Base Product Number | TPS65631 |
Features of TPS65631WDSKR
• 2.9-V to 4.5-V Input Voltage Range
• Fixed 4.6-V Positive Output Voltage
• 0.5% VPOS Accuracy from 25ºC to 85ºC
• Separate VPOS Output Sense Pin
• Negative Output Voltage Digitally Programmable from –1.4 V to –4.4 V (–4 V Default)
• Output Currents up to 200 mA Supported
• Excellent Line Transient Regulation
• Outputs High Impedance During Shut Down
• Short-Circuit Protection
• Thermal Shutdown
• Available in 2.5-mm × 2.5-mm, 10-Pin QFN Package
Applications of TPS65631WDSKR
AMOLED Displays
Environmental & Export Classifications of TPS65631WDSKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
