TPS61183RTJT LED Driver IC 6 Output DC Regulator Step-Up PWM Dimming 30mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS61183RTJT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 6 | Topology: | Step-Up (Boost) |
|---|---|---|---|
| Voltage - Supply (Max): | 24V | Voltage - Supply (Min): | 4.5V |
| Current - Output / Channel: | 30mA | Operating Temperature: | -40°C ~ 85°C (TA) |
| Frequency: | 300kHz ~ 1MHz | Internal Switch(s): | Yes |
| High Light: | TPS61183RTJT,TPS61183RTJT LED Driver IC |
||
Product Description
TPS61183RTJT LED Driver IC 6 Output DC Regulator Step-Up PWM Dimming 30mA
Specifications of TPS61183RTJT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 6 |
| Voltage - Supply (Min) | 4.5V |
| Voltage - Supply (Max) | 24V |
| Voltage - Output | 38V |
| Current - Output / Channel | 30mA |
| Frequency | 300kHz ~ 1MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

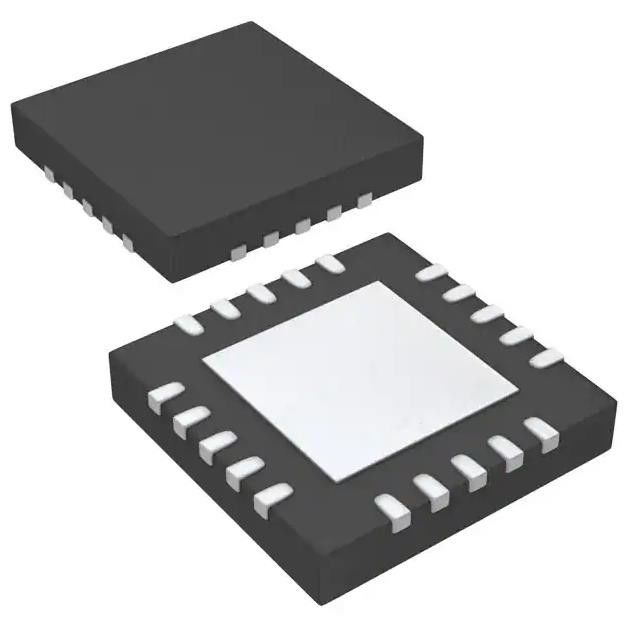

| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| Base Product Number | TPS61183 |
Features of TPS61183RTJT
• 4.5-V to 24-V Input Voltage
• 38-V Maximum Output Voltage
• Integrated 2-A, 40-V MOSFET
• 280-kHz to 1-MHz Programmable Switching Frequency
• Adaptive Boost Output to WLED Voltages
• Wide PWM Dimming Frequency Range
– 100 Hz to 50 KHz for Direct PWM Mode
– 100 Hz to 22 KHz for Frequency Programmable Mode
• 100:1 Dimming Ratio at 20 kHz
• 10000:1 Dimming Ratio at 200 Hz (Direct PWM mode)
• Small External Components
• Integrated Loop Compensation
• Six Current Sinks of 30 mA, Maximum
• 1.5% (Typical) Current Matching
• PWM Brightness Interface Control
• PWM Programmable Mode Brightness Dimming Method or Direct PWM Dimming Method
• 4000-V HBM ESD Protection
• Programmable Overvoltage Threshold
• Built-in WLED Open and Short Protections
• Thermal Shutdown
Applications of TPS61183RTJT
• Notebooks
• Tablets
• Monitors
• Industrial PCs
• Human Machine Interface Screens
• ATMs
• Fishfinder
Environmental & Export Classifications of TPS61183RTJT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
