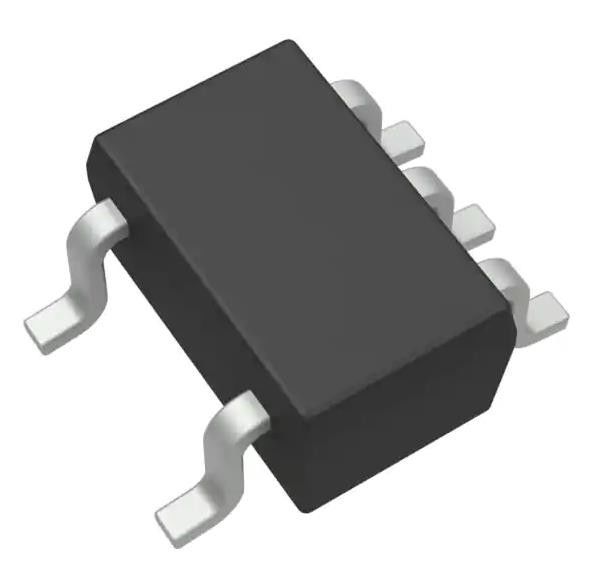

TPS61169DCKR LED Driver IC 1 Output Regulator Step-Up 1.8A (Switch) SC-70-5
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS61169DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Topology: | Step-Up (Boost) |
|---|---|---|---|
| Voltage - Supply (Max): | 5.5V | Voltage - Supply (Min): | 2.7V |
| Current - Output / Channel: | 1.8A (Switch) | Operating Temperature: | -40°C ~ 85°C (TA) |
| Frequency: | 1.2MHz | Internal Switch(s): | Yes |
| High Light: | TPS61169DCKR,TPS61169DCKR LED Driver IC |
||
Product Description
TPS61169DCKR LED Driver IC 1 Output Regulator Step-Up 1.8A (Switch) SC-70-5
Specifications of TPS61169DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | - |
| Current - Output / Channel | 1.8A (Switch) |
| Frequency | 1.2MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
| Base Product Number | TPS61169 |
Features of TPS61169DCKR
• 3-V to 18-V Input voltage range
• 38-V Open LED protection
• 200-mV Reference voltage with 2% accuracy
• 1.2-A Switch FET with 1.2-MHz switching frequency
• Flexible one-wire digital and PWM brightness control
• Built-in soft start
• Up to 90% efficiency
• 2-mm × 2-mm × 0.8-mm 6-Pin WSON package with thermal pad, and SOT-23 package
Applications of TPS61169DCKR
• Smartphone Backlighting
• Tablet Backlighting
• PDAs, Handheld Computers, GPS Receivers
• Portable Media Players, Portable TVs
• White LED Backlighting for Small and Media Form-Factor Displays
• Handheld Data Terminals (EPOS)
• Handheld Medical Equipment
• Thermostat Display
• Blood Glucose Meters
• Flashlights
• Refrigerators and Ovens
Environmental & Export Classifications of TPS61169DCKR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
