TPS61165DRVR LED Driver IC 1 Output Regulator Step-Up (Boost) PWM Dimming 1.2A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS61165DRVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Topology: | Step-Up (Boost) |
|---|---|---|---|
| Voltage - Supply (Max): | 18V | Voltage - Supply (Min): | 3V |
| Voltage - Output: | 3V ~ 38V | Operating Temperature: | -40°C ~ 85°C (TA) |
| Frequency: | 1.2MHz | Internal Switch(s): | Yes |
| High Light: | TPS61165DRVR,TPS61165DRVR LED Driver IC |
||
Product Description

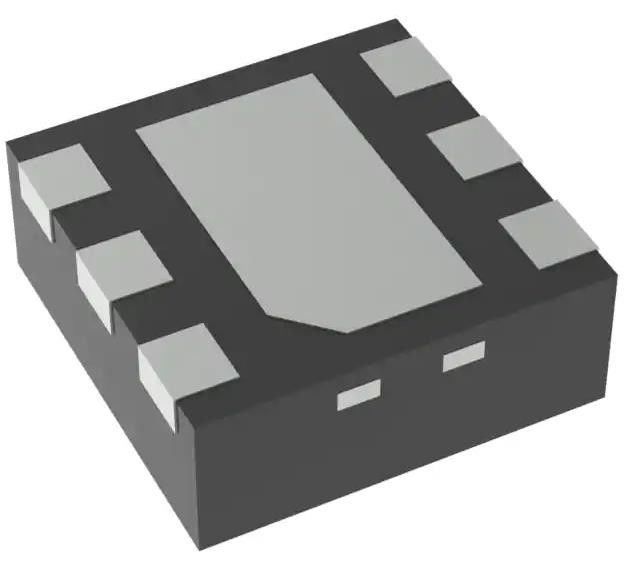

TPS61165DRVR LED Driver IC 1 Output Regulator Step-Up (Boost) PWM Dimming 1.2A
Specifications of TPS61165DRVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 18V |
| Voltage - Output | 3V ~ 38V |
| Current - Output / Channel | 1.2A (Switch) |
| Frequency | 1.2MHz |
| Dimming | PWM |
| Applications | Automotive, Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2x2) |
| Base Product Number | TPS61165 |
Features of TPS61165DRVR
• 3-V to 18-V Input voltage range
• 38-V Open LED protection
• 200-mV Reference voltage with 2% accuracy
• 1.2-A Switch FET with 1.2-MHz switching frequency
• Flexible one-wire digital and PWM brightness control
• Built-in soft start
• Up to 90% efficiency
• 2-mm × 2-mm × 0.8-mm 6-Pin WSON package with thermal pad, and SOT-23 package
Applications of TPS61165DRVR
• High-brightness LED lighting
• White LED backlighting for media form factor display
• Handheld data terminals (EPOS)
• Thermostat display
• Human machine interface (HMI)
• Video surveillance camera
• Exit signs
• HMI and control panels
• Industrial PCs
• IR LED driver
• Refrigerator
• Ovens
Environmental & Export Classifications of TPS61165DRVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
