TPS61042DRBR LED Driver IC 1 Output DC Regulator Step-Up 60mA (Switch) 8-SON
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS61042DRBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | DC DC Regulator | Topology: | Step-Up (Boost) |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Supply (Min): | 1.8V |
| Voltage - Supply (Max): | 6V | Voltage - Output: | 27.5V |
| Applications: | Backlight | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | TPS61042DRBR,TPS61042DRBR LED Driver IC |
||
Product Description

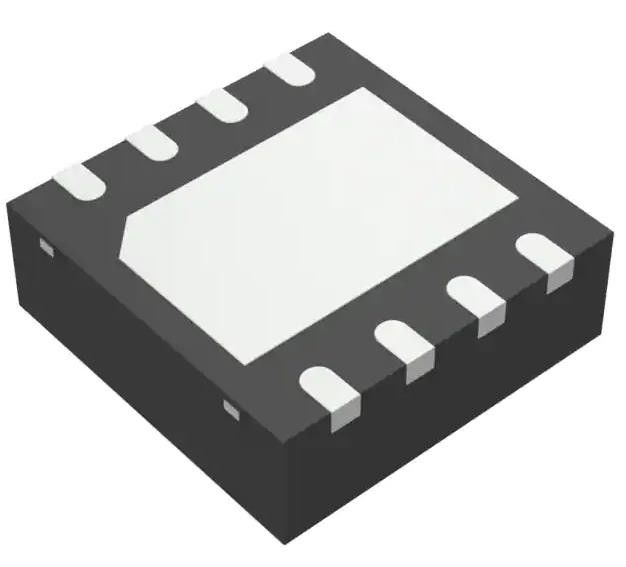

TPS61042DRBR LED Driver IC 1 Output DC Regulator Step-Up 60mA (Switch) 8-SON
Specifications of TPS61042DRBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 1.8V |
| Voltage - Supply (Max) | 6V |
| Voltage - Output | 27.5V |
| Current - Output / Channel | 60mA (Switch) |
| Frequency | 1MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VDFN Exposed Pad |
| Supplier Device Package | 8-SON (3x3) |
| Base Product Number | TPS61042 |
Features of TPS61042DRBR
* Current Source With Overvoltage Protection
* lnput Voltage Range: 1.8 V to 6 V
* Internal 30 V Switch
* Up to 85% Efficiency
* Precise Brightness Control Using PWM Signal orAnalog Signal
* Switching Frequency: Up to 1 MHz
* Internal Power MOSFET Switch: 500 mA
* Operates With Small Output Capacitors Down to100 nF
* Disconnects LEDs During Shutdown
* No Load Quiescent Current: 38 pA Typ
* Shutdown Current: 0.1 A Typ
* Available in a Small 3 mm x 3 mm QFN Package
Applications of TPS61042DRBR
• White LED Supply for Backlight/Sidelight Displays
– PDA, Pocket PC, Smart Phones
– Handheld Devices
– Cellular Phones
Environmental & Export Classifications of TPS61042DRBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
