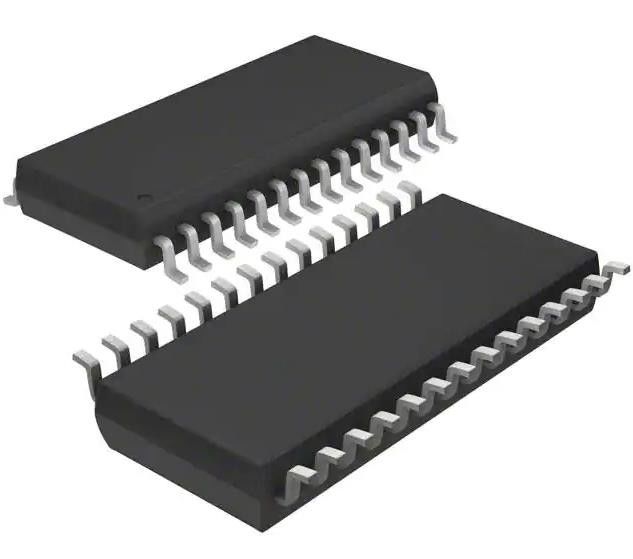

TLC59116IPWR LED Driver IC 16 Output Linear I2C Dimming 120mA 28-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLC59116IPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Internal Switch(s): | Yes | Number Of Outputs: | 16 |
|---|---|---|---|
| Voltage - Supply (Min): | 3V | Voltage - Voltage - Supply (Max): | 5.5V |
| Voltage - Output: | 17V | Current - Output / Channel: | 120mA |
| Dimming: | I²C | Applications: | Backlight |
| High Light: | TLC59116IPWR,TLC59116IPWR LED Driver IC |
||
Product Description
TLC59116IPWR LED Driver IC 16 Output Linear I²C Dimming 120mA 28-TSSOP
Specifications of TLC59116IPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Linear |
| Topology | - |
| Internal Switch(s) | Yes |
| Number of Outputs | 16 |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 17V |
| Current - Output / Channel | 120mA |
| Frequency | - |
| Dimming | I²C |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-TSSOP |
| Base Product Number | TLC59116 |
Features of TLC59116IPWR
* 16 LED Drivers (Each Output Programmable atOff, On, Programmable LED Brightness, orProgrammable Group
Dimming and BlinkingMixed With Individual LED Brightness
* 16 Constant-Current Output Channels
Applications of TLC59116IPWR
• Gaming
• Small Signage
• Industrial Equipment
Environmental & Export Classifications of TLC59116IPWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
