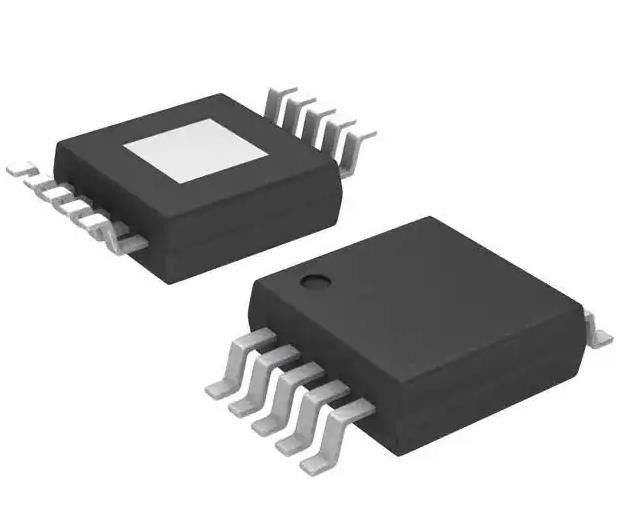

LM3409HVMY LED Driver IC 1 Output DC Controller Analog PWM Dimming 10-HVSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM3409HVMY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | DC DC Controller | Topology: | Step-Down (Buck) |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Supply (Min): | 6V |
| Voltage - Supply (Max): | 75V | Dimming: | Analog, PWM |
| Applications: | Automotive | Operating Temperature: | -40°C ~ 125°C (TJ) |
| High Light: | LM3409HVMY,LM3409HVMY LED Driver IC |
||
Product Description
LM3409HVMY LED Driver IC 1 Output DC Controller Analog PWM Dimming 10-HVSSOP
Specifications of LM3409HVMY
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | DC DC Controller |
| Topology | Step-Down (Buck) |
| Internal Switch(s) | No |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 75V |
| Voltage - Output | - |
| Current - Output / Channel | - |
| Frequency | - |
| Dimming | Analog, PWM |
| Applications | Automotive |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 10-HVSSOP |
| Base Product Number | LM3409 |
Features of LM3409HVMY
• LM3409-Q1 and LM3409HV-Q1 are Automotive Grade Products: AEC-Q100 Grade 1 Qualified
• 2-Ω, 1-A Peak MOSFET Gate Drive
• VIN Range: 6 V to 42 V (LM3409, LM3409-Q1)
• VIN Range: 6 V to 75 V (LM3409HV, LM3409HVQ1)
• Differential, High-Side Current Sense
• Cycle-by-Cycle Current Limit
• No Control Loop Compensation Required
• 10,000:1 PWM Dimming Range
• 250:1 Analog Dimming Range
• Supports All-Ceramic Output Capacitors and Capacitor-less Outputs
• Low-Power Shutdown and Thermal Shutdown
• Thermally Enhanced 10-Pin, HVSSOP Package
Applications of LM3409HVMY
• LED Driver
• Constant Current Source
• Automotive Lighting
• General Illumination
Environmental & Export Classifications of LM3409HVMY
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
