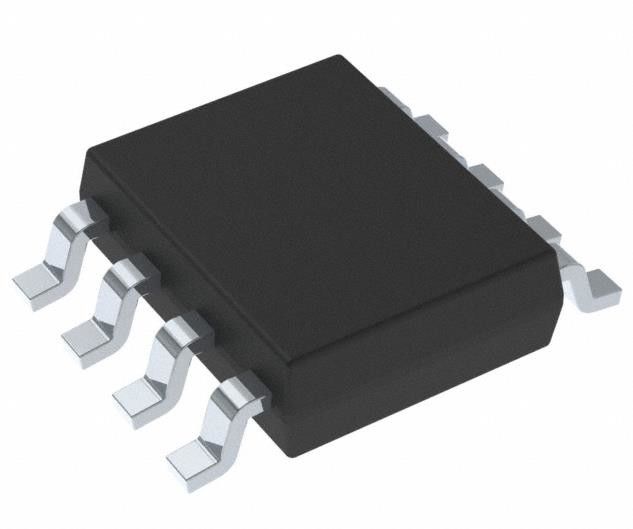

LM3404MRX LED Driver IC 1 Output DC Regulator PWM Dimming 1A 8-SO PowerPad
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM3404MRX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Negative | Topology: | Step-Down (Buck) |
|---|---|---|---|
| Internal Switch(s): | Yes | Number Of Outputs: | 1 |
| Voltage - Supply (Min): | 6V | Voltage - Supply (Max): | 42V |
| Current - Output / Channel: | 1A | Voltage - Output: | 40V |
| Frequency: | 1MHz | Dimming: | PWM |
| High Light: | LM3404MRX,LM3404MRX LED Driver IC |
||
Product Description
LM3404MRX LED Driver IC 1 Output DC Regulator PWM Dimming 1A 8-SO PowerPad
Specifications of LM3404MRX
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | DC DC Regulator |
| Topology | Step-Down (Buck) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 6V |
| Voltage - Supply (Max) | 42V |
| Voltage - Output | 40V |
| Current - Output / Channel | 1A |
| Frequency | 1MHz |
| Dimming | PWM |
| Applications | Automotive, Lighting |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Base Product Number | LM3404 |
Features of LM3404MRX
• Integrated 1-A MOSFET
• VIN Range 6 V to 42 V (LM3404)
• VIN Range 6 V to 75 V (LM3404HV)
• 1.2-A Output Current Overtemperature
• Cycle-by-Cycle Current Limit
• No Control Loop Compensation Required
• Separate PWM Dimming and Low Power Shutdown
• Supports All-Ceramic Output Capacitors and Capacitor-less Outputs
• Thermal Shutdown Protection
• SOIC-8 Package, SO PowerPAD™-8 Package
Descriptions of LM3404MRX
• LED Drivers
• Constant Current Sources
• Automotive Lighting
• General Illumination
• Industrial Lighting
Environmental & Export Classifications of LM3404MRX
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
