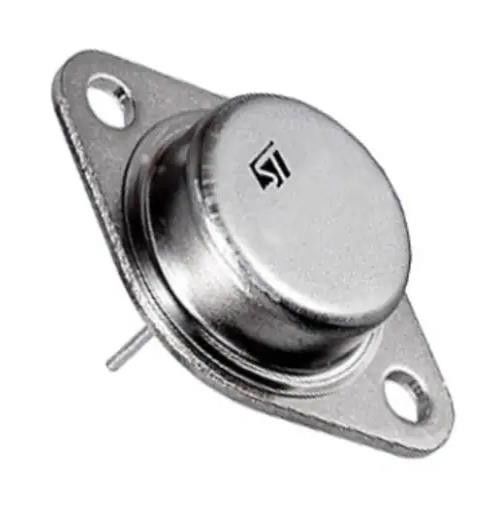

LM237K Linear Voltage Regulator IC Negative Adjustable 1 Output 1.5A TO-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM237K |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Negative | Output Type: | Adjustable |
|---|---|---|---|
| Number Of Regulators: | 1 | Voltage - Input (Max): | 40V |
| Voltage - Output (Min/Fixed): | -1.2V | Voltage - Output (Max): | -37V |
| Current - Output: | 1.5A | PSRR: | 77dB ~ 60dB (120Hz) |
| Protection Features: | Over Temperature, Short Circuit | Operating Temperature: | -25°C ~ 125°C |
| High Light: | LM237K,LM237K Linear Voltage Regulator IC |
||
Product Description
MAX232AMJE/883B 2/2 Integrated Circuit Chip Transceiver RS232 16-CDIP
Specifications of LM237K
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Bulk |
| Product Status | Obsolete |
| Output Configuration | Negative |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | -1.2V |
| Voltage - Output (Max) | -37V |
| Voltage Dropout (Max) | - |
| Current - Output | 1.5A |
| PSRR | 77dB ~ 60dB (120Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -25°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | TO-204AA, TO-3 |
| Supplier Device Package | TO-3 |
| Base Product Number | LM237 |
Features of LM237K
• Output voltage adjustable down to VREF
• 1.5 A guaranteed output current
• 0.3%/V typical load regulation
• 0.01%/V typical line regulation
• Current limit constant with temperature
• Ripple rejection: 77 dB
• Standard 3-lead transistor packages
• Excellent thermal regulation: 0.002%/V
• 50 ppm/°C temperature coefficient
Descriptions of LM237K
The LM337 series are adjustable 3-terminal negative voltage regulators capable of supplying in excess -1.5 A over a -1.2 to -37 V output voltage range.
Environmental & Export Classifications of LM237K
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
