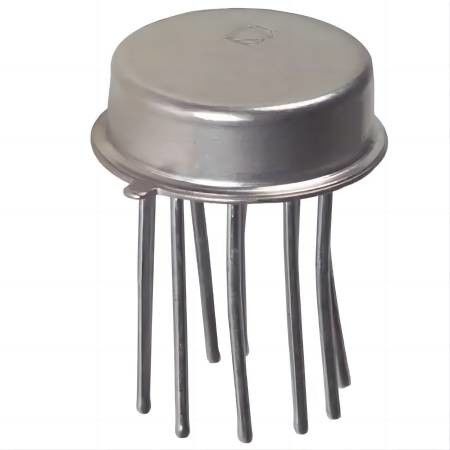

AD536AJHZ RMS to DC Converter TO-100-10 Electronic Components
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD536AJHZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Bulk | Current - Supply: | 1.2mA |
|---|---|---|---|
| Voltage - Supply: | 5V ~ 36V, ±3V ~ 18V | Mounting Type: | Through Hole |
| Package / Case: | TO-100-10 Metal Can | Supplier Device Package: | TO-100-10 |
| High Light: | AD536AJHZ,AD536AJHZ Electronic Components,RMS to DC Converter |
||
Product Description
AD536AJHZ RMS to DC Converter TO-100-10 Electronic Components
Specifications of AD536AJHZ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| RMS to DC Converters | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Bulk |
| Current - Supply | 1.2 mA |
| Voltage - Supply | 5V ~ 36V, ±3V ~ 18V |
| Mounting Type | Through Hole |
| Package / Case | TO-100-10 Metal Can |
| Supplier Device Package | TO-100-10 |
| Base Product Number | AD536 |
Features of AD536AJHZ
* True rms-to-dc conversion
* Laser trimmed to high accuracy
- ±0.2% maximum error (AD536AK)
- ±0.5% maximum error (AD536AJ)
* Wide response capability
- Computes rms of ac and dc signals
- 450 kHz bandwidth: V rms > 100 mV
- 2 MHz bandwidth: V rms > 1 V
- Signal crest factor of 7 for 1% error
Applications of AD536AJHZ
The AD536A is a complete monolithic integrated circuit that performs true rms-to-dc conversion.
Environmental & Export Classifications of AD536AJHZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
