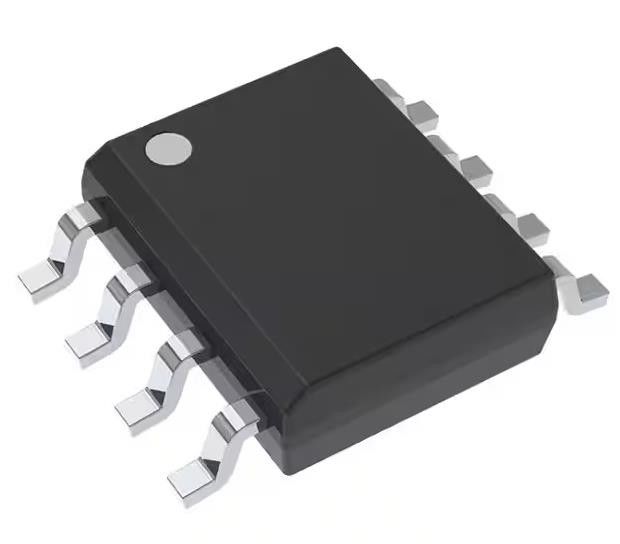

DS91C176TMAX 1/1 Electronic IC Chips Transceiver Half LVDS
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS91C176TMAX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Transceiver | Protocol: | LVDS |
|---|---|---|---|
| Duplex: | Half | Number Of Drivers/Receivers: | 1/1 |
| Data Rate: | 200Mbps | Voltage - Supply: | 3V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
| High Light: | DS91C176TMAX,DS91C176TMAX Electronic IC Chips |
||
Product Description
DS91C176TMAX 1/1 Electronic IC Chips Transceiver Half LVDS
Specifications of DS91C176TMAX
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Drivers, Receivers, Transceivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Type | Transceiver |
| Protocol | LVDS |
| Number of Drivers/Receivers | 1/1 |
| Duplex | Half |
| Data Rate | 200Mbps |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Base Product Number | DS91C176 |
Features of DS91C176TMAX
* DC to 100+ MHz / 200+ Mbps Low Power, LowEMI Operation
* Optimal for ATCA, UTCA Clock DistributionNetworks
* Meets or Exceeds TIA/EIA-899 M-LVDSStandard
* Wide Input Common Mode Voltage forIncreased Noise Immunity
* DS91D176 has Type 1 Receiver Input
* DS91C176 has Type 2 Receiver with Fail-safe
* Industrial Temperature Range
Space Saving SOlC-8 Package
Applications of DS91C176TMAX
The DS91C176 and DS91D176 are 100 MHz single channel M-LVDS (Multipoint Low Voltage Differential Signaling) transceivers designed for applications that utilize multipoint networks (e.g. clock distribution in ATCA and uTCA based systems).
Environmental & Export Classifications of DS91C176TMAX
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
