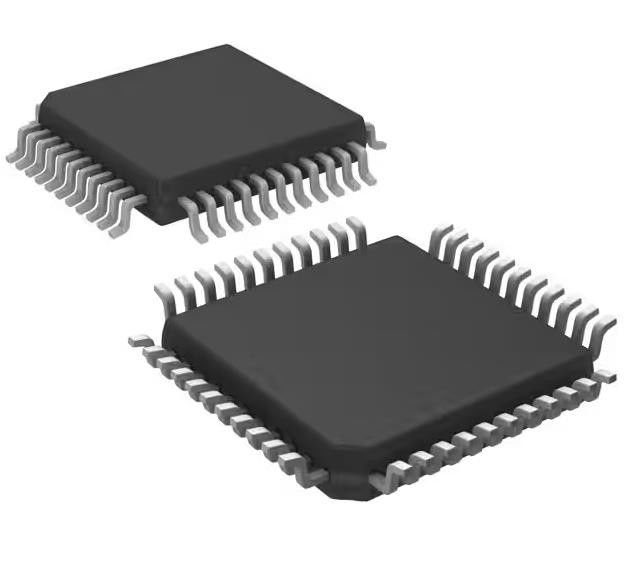

AD7841BSZ 14 Bit Digital To Analog Converter IC 8 44-MQFP (10x10)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD7841BSZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 14 | Number Of D/A Converters: | 8 |
|---|---|---|---|
| Settling Time: | 31µs (Typ) | Output Type: | Voltage - Buffered |
| Differential Output: | No | Data Interface: | Parallel |
| Reference Type: | External | Voltage - Supply, Analog: | ±13.5V ~ 16.5V |
| High Light: | AD7841BSZ,AD7841BSZ Digital to Analog Converter IC,14 Bit Digital to Analog Converter IC |
||
Product Description
2SC5566-TD-E Bipolar (BJT) Transistor NPN 50 V 4 A 400MHz 1.3 W Surface Mount PCP
Specifications of AD7841BSZ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Digital to Analog Converters (DAC) | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tray |
| Product Status | Active |
| Number of Bits | 14 |
| Number of D/A Converters | 8 |
| Settling Time | 31µs (Typ) |
| Output Type | Voltage - Buffered |
| Differential Output | No |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | 5V |
| INL/DNL (LSB) | ±2 (Max), ±1 (Max) |
| Architecture | R-2R |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 44-QFP |
| Supplier Device Package | 44-MQFP (10x10) |
| Mounting Type | Surface Mount |
| Base Product Number | AD7841 |
Features of AD7841BSZ
* Eight 14-Bit DACs in One Package
* Voltage Outputs
* Offset Adjust for Each DAC Pair
* Reference Range of 5 V
* Maximum Output Voltage Range of 10 V 15 V 10% Operation
* Clear Function to User-Defined Voltage
* 44-Lead MQFP Package
Applications of AD7841BSZ
*Automatic Test Equipment
*Process Control
*General Purpose Instrumentation
Environmental & Export Classifications of AD7841BSZ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
