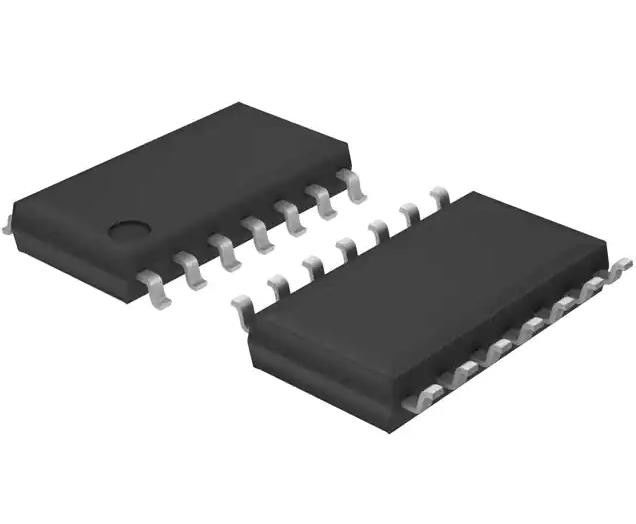

SN74AC14NSR Inverter Electronic IC Chips 6 Channel Schmitt Trigger 14-SOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74AC14NSR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Schmitt Trigger | Logic Type: | Inverter |
|---|---|---|---|
| Number Of Circuits: | 6 | Number Of Inputs: | 6 |
| Voltage - Supply: | 2V ~ 6V | Current - Quiescent (Max): | 2 µA |
| Current - Output High, Low: | 24mA, 24mA | Input Logic Level - Low: | 0.5V ~ 1.1V |
| High Light: | SN74AC14NSR,SN74AC14NSR Electronic IC Chips |
||
Product Description
SN74AC14NSR Inverter Electronic IC Chips 6 Channel Schmitt Trigger 14-SOP
Specifications of SN74AC14NSR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74AC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 6 |
| Number of Inputs | 6 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.5V ~ 1.1V |
| Input Logic Level - High | 2.2V ~ 3.9V |
| Max Propagation Delay @ V, Max CL | 10ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-SO |
| Package / Case | 14-SOIC (0.209", 5.30mm Width) |
| Base Product Number | 74AC14 |
Specifications of SN74AC14NSR
• VCC operation of 2 V to 6 V
• Inputs accept voltages to 6 V
• Max tpd of 9.5 ns at 5 V
Features of SN74AC14NSR
• Synchronize inverted clock inputs
• Debounce a switch
• Invert a digital signal
Environmental & Export Classifications of 2SC5566-TD-E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
