2SC5566-TD-E BJT IC Bipolar Transistor NPN 50 V 4 A 400MHz 1.3 W Surface Mount PCP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 2SC5566-TD-E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Current - Collector (Ic) (Max): | 0.166666667 | Voltage - Collector Emitter Breakdown (Max): | 50 V |
|---|---|---|---|
| Vce Saturation (Max) @ Ib, Ic: | 225mV @ 100mA, 2A | Current - Collector Cutoff (Max): | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 200 @ 500mA, 2V | Power - Max: | 1.3 W |
| Frequency - Transition: | 400MHz | Operating Temperature: | 150°C (TJ) |
| High Light: | 2SC5566-TD-E,2SC5566-TD-E BJT IC,BJT Bipolar Transistor |
||
Product Description

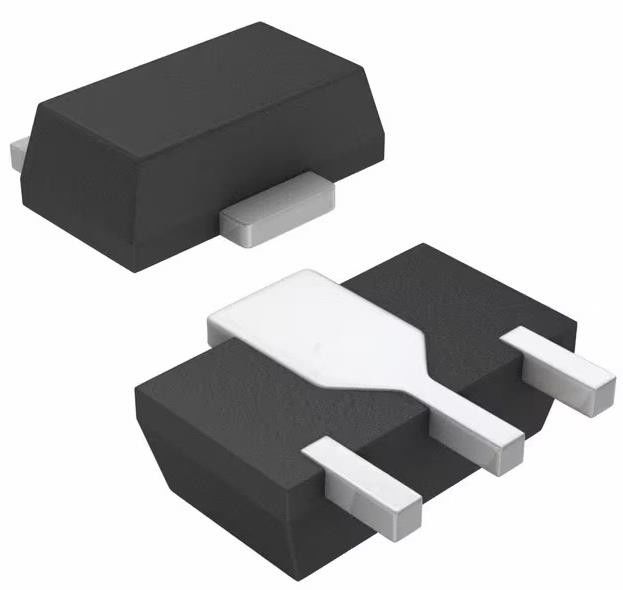

2SC5566-TD-E Bipolar (BJT) Transistor NPN 50 V 4 A 400MHz 1.3 W Surface Mount PCP
Specifications of 2SC5566-TD-E
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | NPN |
| Current - Collector (Ic) (Max) | 0.166666667 |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 225mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V |
| Power - Max | 1.3 W |
| Frequency - Transition | 400MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | PCP |
| Base Product Number | 2SC5566 |
Specifications of 2SC5566-TD-E
• Adoption of FBET and MBIT processes
• Large current capacity
• Low collector-to-emitter saturation voltage
• High-speed switching
• Ultrasmall package facilitales miniaturization in end products
• High allowable power dissipation
Features of 2SC5566-TD-E
• Relay drivers, lamp drivers, motor drivers, fl ash
Environmental & Export Classifications of 2SC5566-TD-E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0075 |
