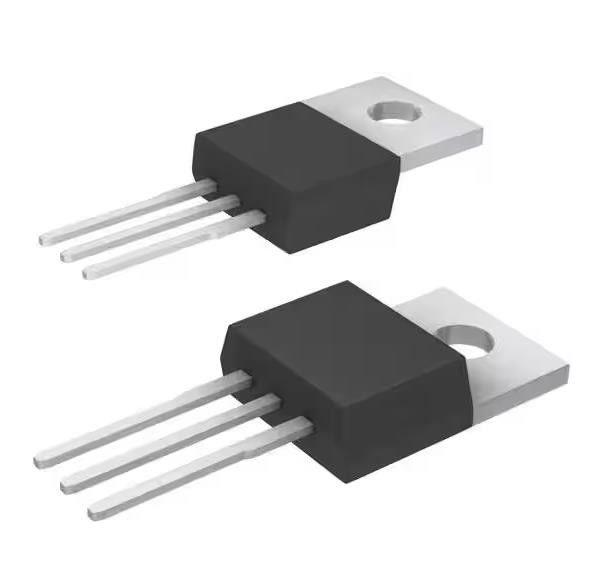

IPP320N20N3GXKSA N-Channel MOSFET IC 200 V 34A (Tc) 136W (Tc) Through Hole PG-TO220-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IPP320N20N3GXKSA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Drain To Source Voltage (Vdss): | 200 V | Current - Continuous Drain (Id) @ 25°C: | 34A (Tc) |
|---|---|---|---|
| Drive Voltage (Max Rds On, Min Rds On): | 10V | Rds On (Max) @ Id, Vgs: | 32mOhm @ 34A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 90µA | Gate Charge (Qg) (Max) @ Vgs: | 29 NC @ 10 V |
| Vgs (Max): | ±20V | Input Capacitance (Ciss) (Max) @ Vds: | 2350 PF @ 100 V |
| High Light: | IPP320N20N3GXKSA,IPP320N20N3GXKSA MOSFET IC,N-Channel MOSFET IC |
||
Product Description
IPP320N20N3GXKSA N-Channel 200 V 34A (Tc) 136W (Tc) Through Hole PG-TO220-3
Specifications of IPP320N20N3GXKSA
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| FETs, MOSFETs | |
| Single FETs, MOSFETs | |
| Mfr | Infineon Technologies |
| Series | OptiMOS™ |
| Package | Tube |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 34A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 32mOhm @ 34A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 90µA |
| Gate Charge (Qg) (Max) @ Vgs | 29 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2350 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 136W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | PG-TO220-3 |
| Package / Case | TO-220-3 |
| Base Product Number | IPP320 |
Specifications of IPP320N20N3GXKSA
• N-channel, normal level
• Excellent gate charge x R DS(on) product (FOM)
• Very low on-resistance R DS(on)
• 175 °C operating temperature
• Pb-free lead plating; RoHS compliant
• Qualified according to JEDEC1) for target application
• Halogen-free according to IEC61249-2-21
• Ideal for high-frequency switching and synchronous rectification
Environmental & Export Classifications of IPP320N20N3GXKSA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
