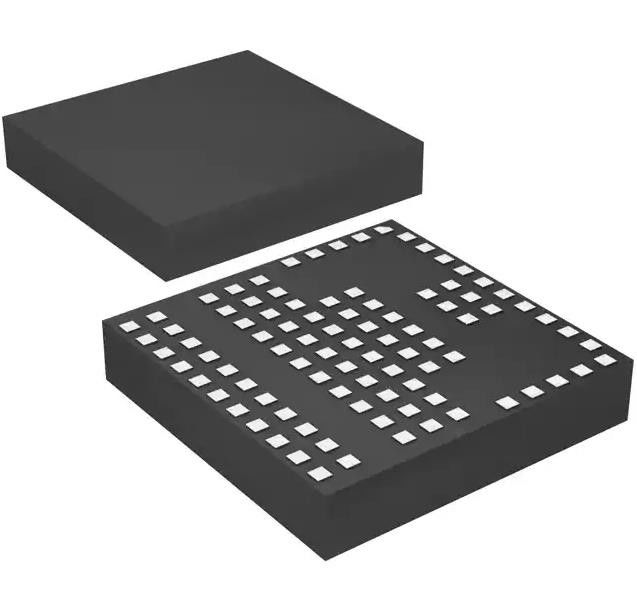

LTM4600EV PoL Module DC DC Converter IC 1 Output 0.6 ~ 5V 10A 4.5V - 20V Input
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTM4600EV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Outputs: | 1 | Voltage - Input (Min): | 4.5V |
|---|---|---|---|
| Voltage - Input (Max): | 20V | Voltage - Output 1: | 0.6 ~ 5V |
| Current - Output (Max): | 10A | Applications: | ITE (Commercial) |
| Operating Temperature: | -40°C ~ 85°C | Efficiency: | 92% |
| High Light: | LTM4600EV,PoL Module DC DC Converter IC,LTM4600EV DC DC Converter IC |
||
Product Description
LTM4600EV PoL Module DC Converter 1 Output 0.6 ~ 5V 10A 4.5V - 20V Input
Specifications of LTM4600EV
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Analog Devices Inc. |
| Series | µModule® |
| Package | Tray |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 20V |
| Voltage - Output 1 | 0.6 ~ 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 10A |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 92% |
| Mounting Type | Surface Mount |
| Package / Case | 104-BLGA Module |
| Size / Dimension | 0.59" L x 0.59" W x 0.11" H (15.0mm x 15.0mm x 2.8mm) |
| Supplier Device Package | 104-LGA (15x15) |
| Base Product Number | LTM4600 |
Specifications of LTM4600EV
* Complete Switch Mode Power Supply
* Wide Input Voltage Range: 4.5V to 20V
* 10A DC, 14A Peak Output Current
* Parallel Two µModule® DC/DC Converters for 20A Output Current
* 0.6V to 5V Output Voltage
* 1.5% Output Voltage Regulation
* Ultrafast Transient Response
* Current Mode Control
* RoHS Compliant Package
* Up to 92% Efficiency
* Programmable Soft-Start
* Output Overvoltage Protection
* Optional Short-Circuit Shutdown Timer
* Small Footprint, Low Profile (15mm × 15mm × 2.82mm) Surface Mount LGA Package
Introduction of LTM4600EV
* Telecom and Networking Equipment
* Servers
* Industrial Equipment
* Point of Load Regulation
Environmental & Export Classifications of LTM4600EV
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
