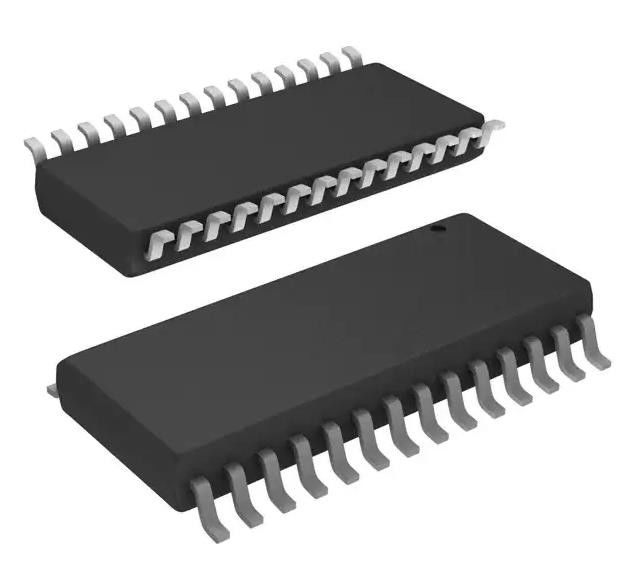

IR2130SPBF Half-Bridge Gate Driver Electronic IC Chips Inverting 28-SOIC
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | IR2130SPBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Driven Configuration: | Half-Bridge | Channel Type: | 3-Phase |
|---|---|---|---|
| Number Of Drivers: | 6 | Gate Type: | IGBT, N-Channel MOSFET |
| Voltage - Supply: | 10V ~ 20V | Logic Voltage - VIL, VIH: | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink): | 250mA, 500mA | Input Type: | Inverting |
| High Light: | IR2130SPBF,IR2130SPBF Electronic IC Chips,Gate Driver Electronic IC Chips |
||
Product Description
AT28C040-20FI EEPROM Memory IC 4Mbit Parallel 200 ns 32-FlatPack Bottom-Brazed
Specifications of IR2130SPBF
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Gate Drivers | |
| Mfr | Infineon Technologies |
| Series | - |
| Package | Tube |
| Product Status | Not For New Designs |
| Driven Configuration | Half-Bridge |
| Channel Type | 3-Phase |
| Number of Drivers | 6 |
| Gate Type | IGBT, N-Channel MOSFET |
| Voltage - Supply | 10V ~ 20V |
| Logic Voltage - VIL, VIH | 0.8V, 2.2V |
| Current - Peak Output (Source, Sink) | 250mA, 500mA |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | 600 V |
| Rise / Fall Time (Typ) | 80ns, 35ns |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 28-SOIC |
| Base Product Number | IR2130 |
Specifications of IR2130SPBF
• Floating channel designed for bootstrap operation Fully operational to +600V Tolerant to negative transient voltage dV/dt immune
• Gate drive supply range from 10 to 20V
• Undervoltage lockout for all channels
• Over-current shutdown turns off all six drivers
• Independent half-bridge drivers
• Matched propagation delay for all channels
• 2.5V logic compatible
• Outputs out of phase with inputs
• Cross-conduction prevention logic
• Also available LEAD-FREE
Introduction of IR2130SPBF
The IR2130/IR2132(J)(S) is a high voltage, high speed power MOSFET and IGBT driver with three independent high and low side referenced output channels.
Environmental & Export Classifications of IR2130SPBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
