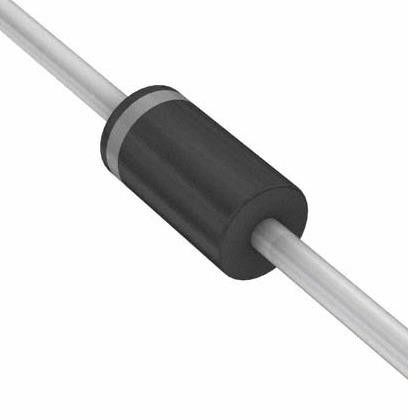

FR104 Diode 400 V 1A Through Hole DO-41 Electronic Components
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | FR104 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Technology: | Standard | Voltage - DC Reverse (Vr) (Max): | 1A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 1.3 V @ 1 A | Speed: | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr): | 150 Ns | Current - Reverse Leakage @ Vr: | 5 µA @ 400 V |
| Capacitance @ Vr, F: | 15pF @ 4V, 1MHz | ||
| Highlight: | FR104 Electronic Components,DO-41 Electronic Components,FR104 Diode |
||
Product Description
FR104 Diode 400 V 1A Through Hole DO-41 Electronic Components
Specifications of FR104
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | SMC Diode Solutions |
| Series | - |
| Package | Tape & Box (TB) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 150 ns |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | DO-204AL, DO-41, Axial |
| Supplier Device Package | DO-41 |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Base Product Number | FR10 |
Features of FR104
* The plastic package carries Underwriters LaboratoryFlammability Classification 94V-0
* Fast switching for high efficiency
* Low reverse leakage
* High forward surge current capability
* High temperature soldering guaranteed: 260C/10seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
* This is a Pb − Free Device
* All SMC parts are traceable to the wafer lot
* Additional testing can be offered upon request
Introduction of FR104
* Case: JEDEC DO-41 molded plastic body
* Terminals: Plated axial leads, solderable per MIL- STD-750, Method 2026
* Polarity: Color band denotes cathode end
* Mounting Position: Any
* Weight:0.012 ounce, 0.33 grams
Environmental & Export Classifications of FR104
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
