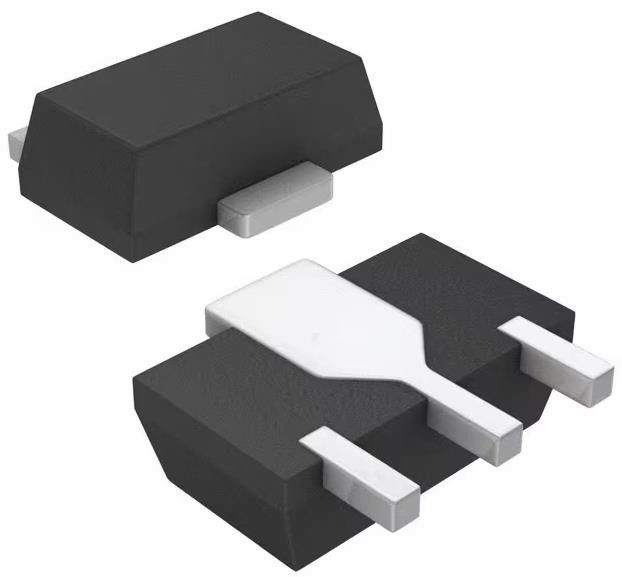

• 2SA2013-TD-E Bipolar Transistor PNP 50 V 4 A 400MHz 3.5 W Surface Mount PCP
2SA2013-TD-E Bipolar Transistor PNP 50 V 4 A 400MHz 3.5 W Surface Mount PCP

2SA2013-TD-E Bipolar Transistor PNP 50 V 4 A 400MHz 3.5 W Surface Mount PCP

Product Details:

Place of Origin: original
Brand Name: original
Certification: original
Model Number: 2SA2013-TD-E

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiation
Packaging Details: carton box
Delivery Time: 1-3working days
Payment Terms: T/T
Supply Ability: 100,000
Get Best Price Contact Now

Detail Information

Transistor Type: PNP Voltage - Collector Emitter Breakdown (Max): 50V
Current - Collector (Ic) (Max): 0.166666667 Current - Collector Cutoff (Max): 1µA (ICBO)
Vce Saturation (Max) @ Ib, Ic: 340mV @ 100mA, 2A Power - Max: 3.5V
Frequency - Transition: 400MHz DC Current Gain (hFE) (Min) @ Ic, Vce: 200 @ 500mA, 2V
High Light:

2SA2013-TD-E

,

2SA2013-TD-E Bipolar Transistor PNP

Product Description

2SA2013-TD-E Bipolar Transistor PNP 50 V 4 A 400MHz 3.5 W Surface Mount PCP



Specifications of 2SA2013-TD-E



TYPE DESCRIPTION
Category Discrete Semiconductor Products
  Transistors
  Bipolar (BJT)
  Single Bipolar Transistors
Mfr onsemi
Series -
Package Tape & Reel (TR)
  Cut Tape (CT)
Product Status Active
Transistor Type PNP
Current - Collector (Ic) (Max) 0.166666667
Voltage - Collector Emitter Breakdown (Max) 50 V
Vce Saturation (Max) @ Ib, Ic 340mV @ 100mA, 2A
Current - Collector Cutoff (Max) 1µA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 200 @ 500mA, 2V
Power - Max 3.5 W
Frequency - Transition 400MHz
Operating Temperature 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package PCP
Base Pro2SA2013-TD-E Bipolar (BJT) Transistor PNP 50 V 4 A 400MHz 3.5 W Surface Mount PCPduct Number 2SA2013



Application of 2SA2013-TD-E


• Relay drivers, lamp drivers, motor drivers, flash



Features of 2SA2013-TD-E


• Adoption of FBET and MBIT processes
• Large current capacity
• Low collector-to-emitter saturation voltage
• High-speed switching
• Ultrasmall package facilitales miniaturization in end products
• High allowable power dissipation





Environmental & Export Classifications of 2SA2013-TD-E



ATTRIBUTE DESCRIPTION
RoHS Status ROHS3 Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0075
