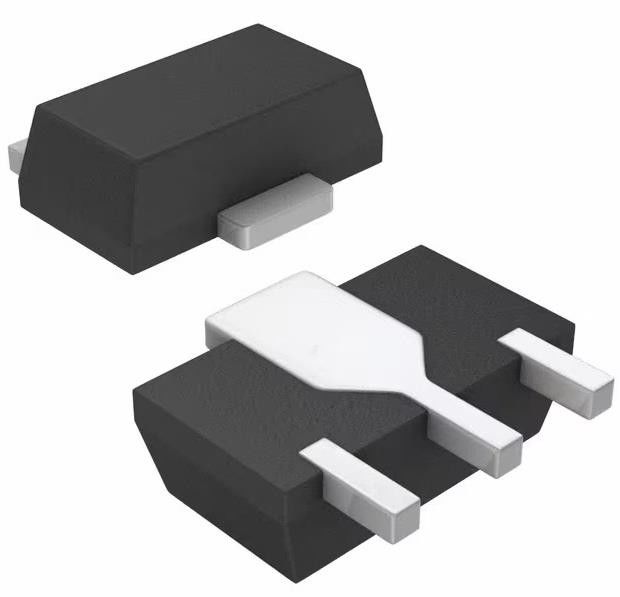

2SA2013 BJT IC Bipolar Transistor PNP 50 V 4 A 400MHz 3.5 W Surface Mount PCP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | 2SA2013 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Transistor Type: | PNP | Current - Collector (Ic) (Max): | 0.166666667 |
|---|---|---|---|
| Voltage - Collector Emitter Breakdown (Max): | 50V | Vce Saturation (Max) @ Ib, Ic: | 340mV @ 100mA, 2A |
| Current - Collector Cutoff (Max): | 1µA (ICBO) | DC Current Gain (hFE) (Min) @ Ic, Vce: | 200 @ 500mA, 2V |
| Power - Max: | 3.5V | Frequency - Transition: | 400MHz |
| High Light: | 2SA2013,2SA2013 BJT IC,Bipolar Transistor PNP 50 V |
||
Product Description
2SA2013 Bipolar (BJT) Transistor PNP 50 V 4 A 400MHz 3.5 W Surface Mount PCP
Specifications of 2SA2013
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Transistors | |
| Bipolar (BJT) | |
| Single Bipolar Transistors | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Transistor Type | PNP |
| Current - Collector (Ic) (Max) | 0.166666667 |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 340mV @ 100mA, 2A |
| Current - Collector Cutoff (Max) | 1µA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 500mA, 2V |
| Power - Max | 3.5 W |
| Frequency - Transition | 400MHz |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | PCP |
| Base Product Number | 2SA2013 |
Features of 2SA2013
• Adoption of FBET and MBIT processes
• Large current capacity
• Low collector-to-emitter saturation voltage
• High-speed switching
• Ultrasmall package facilitales miniaturization in end products
• High allowable power dissipation
Application of 2SA2013
• Relay drivers, lamp drivers, motor drivers, fl ash
Environmental & Export Classifications of 2SA2013
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0075 |
