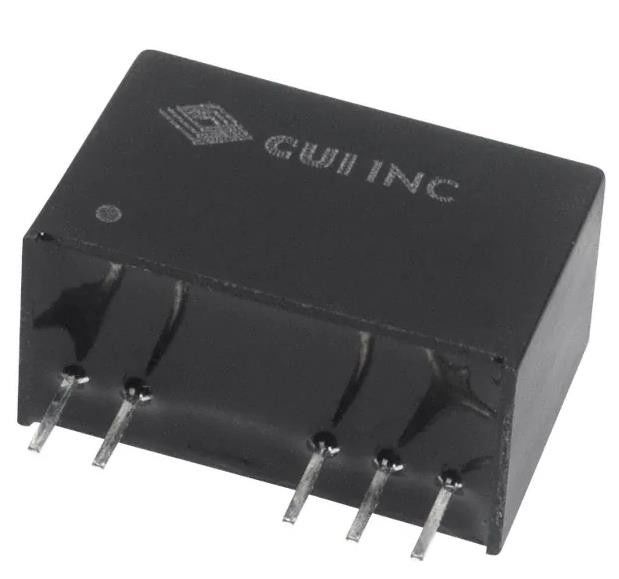

VQA-S9-D15-SIP Isolated Module DC DC Converter IC 2 Output 15V -8V 100mA, 80mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | VQA-S9-D15-SIP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Isolated Module | Number Of Outputs: | 2 |
|---|---|---|---|
| Voltage - Input (Min): | 9V | Voltage - Input (Max): | 15V |
| Voltage - Output 1: | 15V | Voltage - Output 2: | -8V |
| Current - Output (Max): | 100mA, 80mA | Power (Watts): | 2 W |
| High Light: | VQA-S9-D15-SIP,Isolated Module DC DC Converter IC,VQA-S9-D15-SIP DC DC Converter IC |
||
Product Description
VQA-S9-D15-SIP Isolated Module DC DC Converter 2 Output 15V -8V 100mA, 80mA
Specifications of VQA-S9-D15-SIP
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | CUI Inc. |
| Series | VQA |
| Package | Tube |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 15V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -8V |
| Voltage - Output 3 | - |
| Current - Output (Max) | 100mA, 80mA |
| Power (Watts) | 2 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 80% |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Approval Agency | CB Scheme, IEC, UL |
| Standard Number | 60950-1 |
| Base Product Number | VQA-S9 |
Features of VQA-S9-D15-SIP
• designed for IGBT driver modules
• small footprint
• 3,000 Vac isolation
• short circuit protection
• temperature range (-40~105°C)
• efficiency up to 80%
• designed to meet EN/BS EN 62368-1
Environmental & Export Classifications of VQA-S9-D15-SIP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
