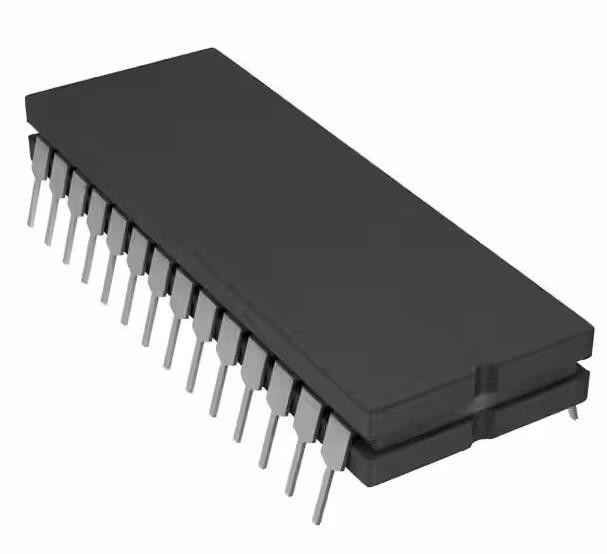

AD7874SQ Electronic IC Chips Data Acquisition System DAS 12 B 116k Parallel 28-CDIP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AD7874SQ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Data Acquisition System (DAS) | Number Of Channels: | 4 |
|---|---|---|---|
| Resolution (Bits): | 12 B | Sampling Rate (Per Second): | 116k |
| Data Interface: | Parallel | Voltage Supply Source: | Dual ± |
| Voltage - Supply: | ±5V | Operating Temperature: | -55°C ~ 125°C |
| High Light: | AD7874SQ,AD7874SQ Electronic IC Chips |
||
Product Description
AD7874SQ Electronic IC Chips Data Acquisition System (DAS) 12 b 116k Parallel 28-CDIP
Specifications of AD7874SQ
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| ADCs/DACs - Special Purpose | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tube |
| Type | Data Acquisition System (DAS) |
| Number of Channels | 4 |
| Resolution (Bits) | 12 b |
| Sampling Rate (Per Second) | 116k |
| Data Interface | Parallel |
| Voltage Supply Source | Dual ± |
| Voltage - Supply | ±5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole |
| Package / Case | 28-CDIP (0.600", 15.24mm) |
| Supplier Device Package | 28-CDIP |
| Base Product Number | AD7874 |
Features of AD7874SQ
* Four On-Chip Track/Hold Amplifiers
* Simultaneous Sampling of 4 Channels
* Fast 12-Bit ADC with 8 ms Conversion Time/Channel
* 29 kHz Sample Rate for All Four Channels
* On-Chip Reference
* 610 V Input Range
* 65 V Supplies
* APPLICATIONS
* Sonar
* Motor Controllers
* Adaptive Filters
* Digital Signal Processing
Applications of TPS71550DCKR
The AD7874 is a four-channel simultaneous sampling, 12-bit data acquisition system.
Environmental & Export Classifications of AD7874SQ
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
