DRV8823DCAR Bipolar Motor Driver IC MOSFET Serial 48-HTSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DRV8823DCAR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Interface: | Serial | Applications: | General Purpose |
|---|---|---|---|
| Current - Output: | 1.5A | Voltage - Supply: | 8V ~ 32V |
| Voltage - Load: | 8V ~ 32V | Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 48-TFSOP (0.240", 6.10mm Width) Exposed Pad |
| High Light: | DRV8823DCAR,DRV8823DCAR Motor Driver Power IC,Bipolar Motor Driver IC |
||
Product Description

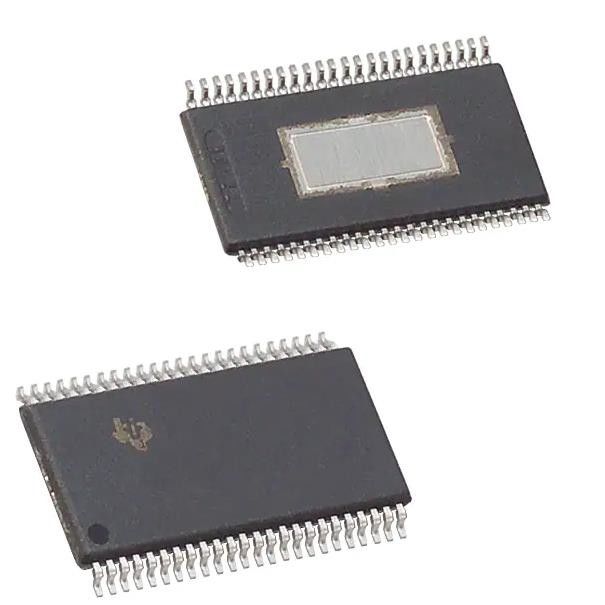

DRV8823DCAR Bipolar Motor Driver Power MOSFET Serial 48-HTSSOP
Specifications of DRV8823DCAR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Motor Drivers, Controllers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (8) |
| Interface | Serial |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 8V ~ 32V |
| Voltage - Load | 8V ~ 32V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 48-TFSOP (0.240", 6.10mm Width) Exposed Pad |
| Supplier Device Package | 48-HTSSOP |
| Base Product Number | DRV8823 |
Features of DRV8823DCAR
* PWM Motor Driver With Four H-Bridges
- Drives Two Stepper Motors, One Stepper andTwo DC Motors, or Four DC Motors
- Up to 1.5-A Current Per Winding
- Low On-Resistance
- Programmable Maximum Winding Current
- Three-Bit Winding Current Control Allows up toEight Current Levels
- Selectable Slow or Mixed Decay Modes
* 8- to 32-V Operating Supply Voltage Range
* Internal Charge Pump for Gate Drive
* Built-in 3.3-V Reference
* Serial Digital Control Interface
* Fully Protected Against Undervoltage.Overtemperature, and Overcurrent Events
* Thermally-Enhanced Surface Mount Package
Applications of DRV8823DCAR
• Printers
• Scanners
• Office Automation Machines
• Gaming Machines
• Factory Automation
• Robotics
Environmental & Export Classifications of DRV8823DCAR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
