TPS62130ARGTT Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 3A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS62130ARGTT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Step-Down | Output Configuration: | Positive |
|---|---|---|---|
| Topology: | Buck | Output Type: | Adjustable |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 3V |
| Voltage - Input (Max): | 17V | Voltage - Output (Min/Fixed): | 0.9V |
| Current - Output: | 3A | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | TPS62130ARGTT,TPS62130ARGTT Buck Switching Regulator IC |
||
Product Description
TPS62130ARGTT Buck Switching Regulator IC Positive Adjustable 0.9V 1 Output 3A
Specifications of TPS62130ARGTT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | DCS-Control™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | 6V |
| Current - Output | 3A |
| Frequency - Switching | 2.5MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |

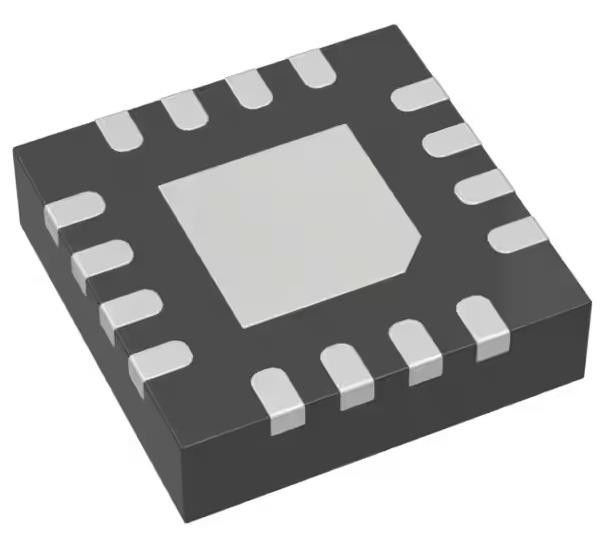

| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-VQFN (3x3) |
| Base Product Number | TPS62130 |
Features of TPS62130ARGTT
• DCS-Control™ topology
• Input voltage range: 3 V to 17 V
• Up to 3-A output current
• Adjustable output voltage from 0.9 V to 6 V
• Pin-selectable output voltage (nominal, + 5%)
• Programmable soft start and tracking
• Seamless power save mode transition
• Quiescent current of 17 µA (typical)
• Selectable operating frequency
• Power-good output
• 100% duty cycle mode
• Short circuit protection
• Overtemperature protection
• Pin-to-pin compatible with the TPS62140 and TPS62150
• Available in a 3-mm × 3-mm, QFN-16 package
• Use the TPS82130 for faster designs
Applications of TPS62130ARGTT
• Standard 12-V rail supplies
• POL supply from single or multiple Li-ion battery
• Solid-state drives
• Embedded systems
• LDO replacement
• Mobile PCs, tablets, modems, cameras
• Server, microserver
• Data terminal, point of sales (ePOS)
Environmental & Export Classifications of TPS62130ARGTT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
