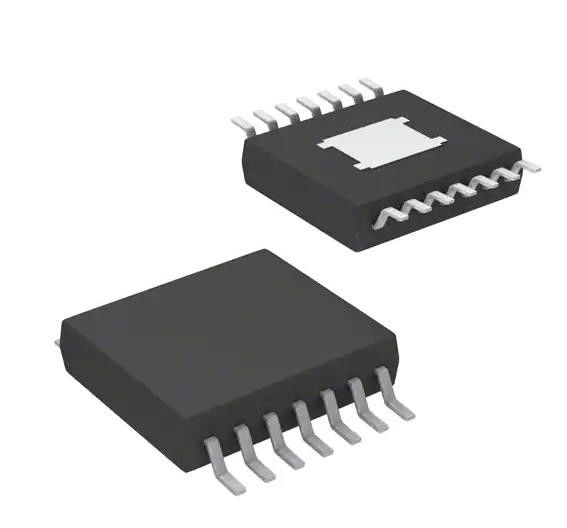

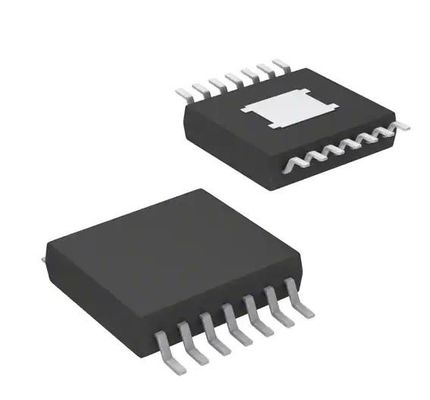

TPS61175PWPR Boost SEPIC Switching Regulator IC Positive Adjustable 2.9V 1 Output 3A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS61175PWPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Step-Up, Step-Up/Step-Down | Output Configuration: | Positive |
|---|---|---|---|
| Topology: | Boost, Flyback, SEPIC | Output Type: | Adjustable |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 2.9V |
| Voltage - Input (Max): | 18V | Voltage - Output (Min/Fixed): | 2.9V |
| Current - Output: | 3A (Switch) | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | TPS61175PWPR,Boost SEPIC Switching Regulator IC,TPS61175PWPR Switching Regulator IC |
||
Product Description
TPS61175PWPR Boost SEPIC Switching Regulator IC Positive Adjustable 2.9V 1 Output 3A
Specifications of TPS61175PWPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 2.9V |
| Voltage - Output (Max) | 38V |
| Current - Output | 3A (Switch) |
| Frequency - Switching | 200kHz ~ 2.2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 14-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-HTSSOP |
| Base Product Number | TPS61175 |
Features of TPS61175PWPR
• 600-nA ultra-low IQ into VOUT pin
• 400-nA ultra-low IQ into VIN pin
• Operating input voltage from 0.7 V to 5.5 V
• Adjustable output voltage from 1.8 V to 5.5 V
• Fixed output voltage versions available
• Minimum 0.8-A switch peak current limit
• Regulated output voltage in down mode
• True disconnection during shutdown
• Up to 75% efficiency at 10-µA load with fixed output voltage versions
• Up to 93% efficiency from 10-mA to 300-mA load
• 6-ball 1.23-mm × 0.88-mm WCSP package and 2-mm × 2-mm WSON package
• Create a custom design using the TPS61099x with the WEBENCH® Power Designer
Applications of TPS61175PWPR
• 5-V to 12-V, 24-V Power conversion
• Supports SEPIC and flyback topologies
• ADSL modems
• TV tuners
Environmental & Export Classifications of TPS61175PWPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
