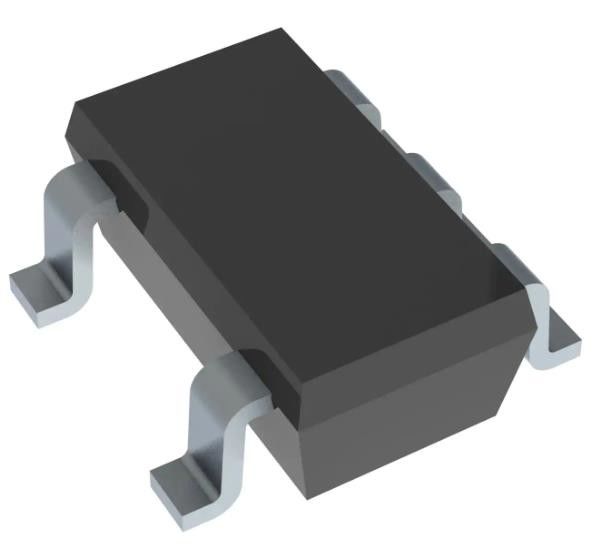

TPS61041DBVR LED Driver IC 1 Output DC DC Regulator Step-Up PWM Dimming 215mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS61041DBVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | DC DC Regulator | Topology: | Step-Up (Boost) |
|---|---|---|---|
| Internal Switch(s): | Yes | Number Of Outputs: | 1 |
| Voltage - Supply (Min): | 1.8V | Voltage - Supply (Max): | 6V |
| Voltage - Output: | 28V | Current - Output / Channel: | 215mA (Switch) |
Product Description
TPS61041DBVR LED Driver IC 1 Output DC DC Regulator Step-Up PWM Dimming 215mA
Specifications of TPS61041DBVR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| LED Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | DC DC Regulator |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 1.8V |
| Voltage - Supply (Max) | 6V |
| Voltage - Output | 28V |
| Current - Output / Channel | 215mA (Switch) |
| Frequency | 1MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| Base Product Number | TPS61041 |
Features of TPS61041DBVR
• 1.8-V to 6-V Input Voltage Range
• Adjustable Output Voltage Range up to 28 V
• 400-mA (TPS61040) and 250-mA (TPS61041) Internal Switch Current
• Up to 1-MHz Switching Frequency
• 28-μA Typical No-Load Quiescent Current
• 1-μA Typical Shutdown Current
• Internal Soft Start
• Available in SOT23-5, TSOT23-5, and 2-mm × 2-mm × 0.8-mm WSON Packages
Applications of TPS61041DBVR
• LCD Bias Supply
• White-LED Supply for LCD Backlights
• Digital Still Camera
• PDAs, Organizers, and Handheld PCs
• Cellular Phones
• Internet Audio Players
• Standard 3.3-V or 5-V to 12-V Conversion
Environmental & Export Classifications of TPS61041DBVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
