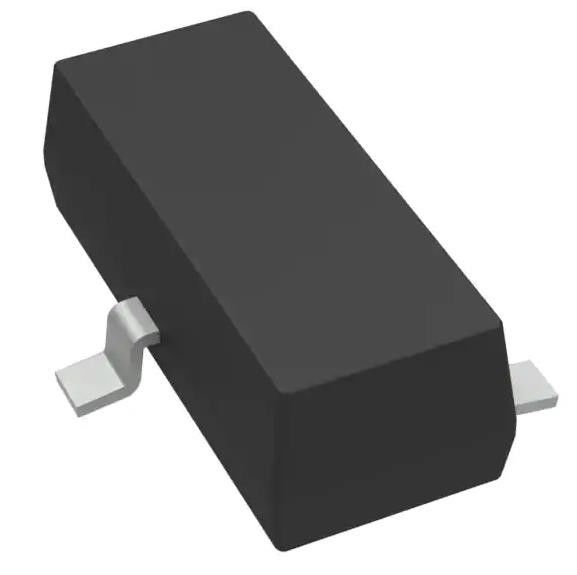

DRV5053OAQDBZR Hall Effect Sensor Single Axis SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DRV5053OAQDBZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Axis: | Single | Output Type: | Analog Voltage |
|---|---|---|---|
| Sensing Range: | ±73mT | Voltage - Supply: | 2.5V ~ 38V |
| Current - Supply (Max): | 3.6mA | Current - Output (Max): | 2.3mA |
| Bandwidth: | 20kHz | Operating Temperature: | -40°C ~ 125°C (TA) |
Product Description
DRV5013ADQDBZR Digital Switch Latch Open Drain Hall Effect SOT-23-3
Specifications of DRV5053OAQDBZR
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Magnetic Sensors | |
| Linear, Compass (ICs) | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Hall Effect |
| Axis | Single |
| Output Type | Analog Voltage |
| Sensing Range | ±73mT |
| Voltage - Supply | 2.5V ~ 38V |
| Current - Supply (Max) | 3.6mA |
| Current - Output (Max) | 2.3mA |
| Resolution | - |
| Bandwidth | 20kHz |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Features | Temperature Compensated |
| Supplier Device Package | SOT-23-3 |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | DRV5053 |
Features of DRV5053OAQDBZR
• Linear output hall sensor
• Superior temperature stability
– Sensitivity ±10% over temperature
• High sensitivity options:
– –11 mV/mT (OA, see Figure 17)
– –23 mV/mT (PA)
– –45 mV/mT (RA)
– –90 mV/mT (VA)
– +23 mV/mT (CA)
– +45 mV/mT (EA)
• Supports a wide voltage range
– 2.5 V to 38 V
– No external regulator required
• Wide operating temperature range
– TA = –40 to 125°C (Q, see Figure 17)
• Amplified output stage
– 2.3-mA sink, 300-µA source
• Output voltage: 0.2 V to approximately 1.8 V
– B = 0 mT, OUT = 1 V
• Fast power-on: 35 µs
• Small package and footprint
– Surface mount 3-pin SOT-23 (DBZ)
• 2.92 mm × 2.37 mm
– Through-hole 3-pin TO-92 (LPG)
• 4.00 mm × 3.15 mm
• Protection features:
– Reverse supply protection (up to –22 V)
– Supports up to 40-V load dump
– Output short-circuit protection
– Output current limitation
Applications of DRV5053OAQDBZR
• Flow Meters
• Docking Adjustment
• Vibration Correction
• Damper Controls
Environmental & Export Classifications of DRV5053OAQDBZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
