DRV5013ADQDBZR Digital Switch Latch Open Drain Hall Effect SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DRV5013ADQDBZR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Latch | Technology: | Hall Effect |
|---|---|---|---|
| Polarization: | South Pole | Sensing Range: | 5mT Trip, -5mT Release |
| Test Condition: | -40°C ~ 125°C | Voltage - Supply: | 2.7V ~ 38V |
| Current - Supply (Max): | 2.7mA (Typ) | Current - Output (Max): | 30mA |
Product Description

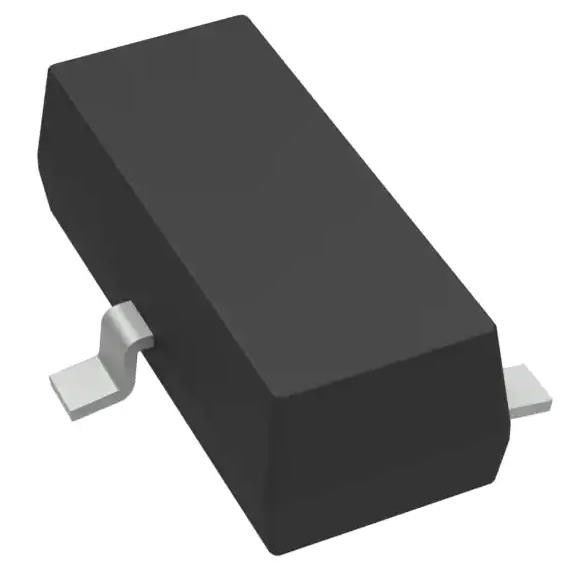

DRV5013ADQDBZR Digital Switch Latch Open Drain Hall Effect SOT-23-3
Specifications of DRV5013ADQDBZR
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Magnetic Sensors | |
| Switches (Solid State) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Function | Latch |
| Technology | Hall Effect |
| Polarization | South Pole |
| Sensing Range | 5mT Trip, -5mT Release |
| Test Condition | -40°C ~ 125°C |
| Voltage - Supply | 2.7V ~ 38V |
| Current - Supply (Max) | 2.7mA (Typ) |
| Current - Output (Max) | 30mA |
| Output Type | Open Drain |
| Features | Temperature Compensated |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-3 |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Base Product Number | DRV5013 |
Features of DRV5013ADQDBZR
• Digital bipolar-latch Hall sensor
• Superior temperature stability
– BOP ±10% over temperature
• Multiple sensitivity options (BOP / BRP)
– ±1.3 mT (FA, see Device Nomenclature)
– ±2.7 mT (AD, see Device Nomenclature)
– ±6 mT (AG, see Device Nomenclature)
– ±12 mT (BC, see Device Nomenclature)
• Supports a wide voltage range
– 2.5 V to 38 V
– No external regulator required
• Wide operating temperature range
– TA = –40 to +125°C (Q, see Device Nomenclature)
– TA = –40 to +150°C (E, see Device Nomenclature)
• Open-drain output (30-mA sink)
• Fast 35-µs power-on time
• Small package and footprint
– Surface mount 3-pin SOT-23 (DBZ)
• 2.92 mm × 2.37 mm
– Through-hole 3-pin TO-92 (LPG, LPE)
• 4.00 mm × 3.15 mm
Applications of MMA8652FCR1
• Power tools
• Flow meters
• Valve and solenoid status
• Brushless dc motors
• Proximity sensing
• Tachometers
Environmental & Export Classifications of DRV5013ADQDBZR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
