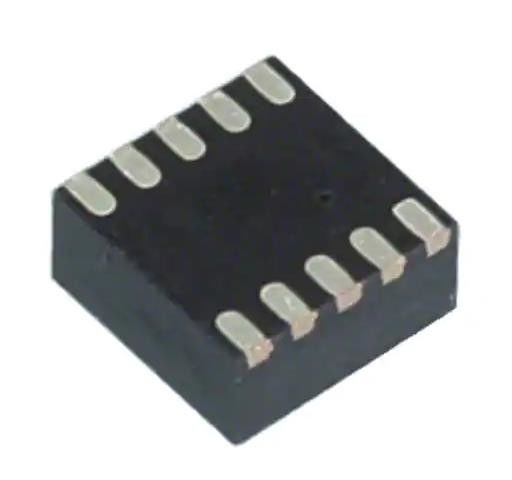

MMA8652FCR1 Accelerometer X, Y, Z Axis ±2g, 4g, 8g 0.78Hz ~ 400Hz 10-DFN (2x2)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MMA8652FCR1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Sleep Mode | Axis: | X, Y, Z |
|---|---|---|---|
| Acceleration Range: | ±2g, 4g, 8g | Sensitivity (LSB/g): | 1024 (±2g) ~ 256 (±8g) |
| Bandwidth: | 0.78Hz ~ 400Hz | Output Type: | I²C |
| Voltage - Supply: | 1.95V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C (TA) |
Product Description
MMA8652FCR1 Accelerometer X, Y, Z Axis ±2g, 4g, 8g 0.78Hz ~ 400Hz 10-DFN (2x2)
Specifications of MMA8652FCR1
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Motion Sensors | |
| Accelerometers | |
| Mfr | N-X-P USA Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Digital |
| Axis | X, Y, Z |
| Acceleration Range | ±2g, 4g, 8g |
| Sensitivity (LSB/g) | 1024 (±2g) ~ 256 (±8g) |
| Sensitivity (mV/g) | - |
| Bandwidth | 0.78Hz ~ 400Hz |
| Output Type | I²C |
| Voltage - Supply | 1.95V ~ 3.6V |
| Features | Sleep Mode |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN |
| Supplier Device Package | 10-DFN (2x2) |
| Base Product Number | MMA86 |
Features of MMA8652FCR1
• 1.95 V to 3.6 V supply voltage
• 1.62 V to 3.6 V digital interface voltage
• ±2 g, ±4 g, and ±8 g dynamically selectable full-scale ranges
• Output Data Rates (ODR) from 1.56 Hz to 800 Hz
• 12-bit digital output
• I2C digital output interface with programmable interrupts
• Four embedded channels of configurable motion detection (Freefall, Motion,Pulse, Transient)
• Orientation (Portrait/Landscape) detection with programmable hysteresis
• Configurable automatic ODR change triggered by the Auto-Wake/Sleep state change
• 32-sample FIFO
• High-Pass Filter Data available per sample and through the FIFO
• Self-Test
Applications of MMA8652FCR1
• Tilt compensation in e-compass applications
• Static orientation detection (Portrait/Landscape, Up/Down, Left/Right, Back/ Front position identification)
• Notebook, tablet, e-reader, and laptop tumble and freefall detection
• Real-time orientation detection (virtual reality and gaming 3D user orientation feedback)
• Real-time activity analysis (pedometer step counting, freefall drop detection for HDD, dead-reckoning GPS backup)
• Motion detection for portable product power saving (Auto-SLEEP and Auto-WAKE for cell phone, PDA, GPS, gaming)
• Shock and vibration monitoring (mechatronic compensation, shipping and warranty usage logging)
• User interface (tilt menu scrolling, tap detection for button replacement)
Environmental & Export Classifications of MMA8652FCR1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
