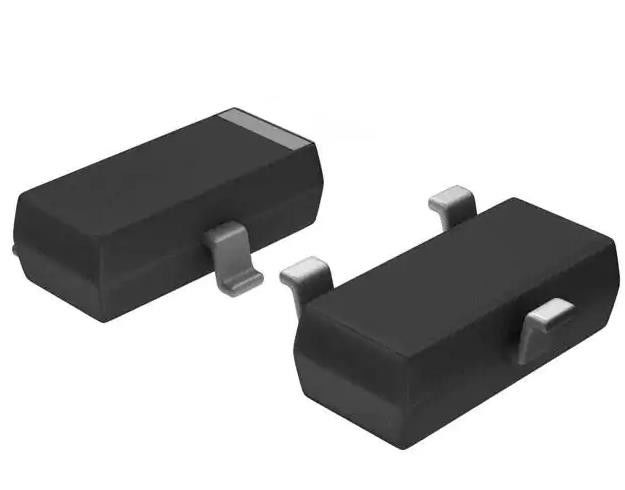

LM61CIM3X Temperature Sensor Analog, Local -30°C ~ 100°C 10mV/°C SOT-23-3
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM61CIM3X |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Shutdown Mode | Sensor Type: | Analog, Local |
|---|---|---|---|
| Sensing Temperature - Local: | -30°C ~ 100°C | Output Type: | Analog Voltage |
| Voltage - Supply: | 2.7V ~ 10V | Resolution: | 10mV/°C |
| Accuracy - Highest (Lowest): | ±3°C (±4°C) | Operating Temperature: | -30°C ~ 100°C |
Product Description
LM61CIM3X Temperature Sensor Analog, Local -30°C ~ 100°C 10mV/°C SOT-23-3
Specifications of LM61CIM3X
| TYPE | DESCRIPTION |
| Category | Sensors, Transducers |
| Temperature Sensors | |
| Analog and Digital Output | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Sensor Type | Analog, Local |
| Sensing Temperature - Local | -30°C ~ 100°C |
| Sensing Temperature - Remote | - |
| Output Type | Analog Voltage |
| Voltage - Supply | 2.7V ~ 10V |
| Resolution | 10mV/°C |
| Features | Shutdown Mode |
| Accuracy - Highest (Lowest) | ±3°C (±4°C) |
| Test Condition | 25°C (-30°C ~ 100°C) |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| Base Product Number | LM61 |
Features of LM61CIM3X
• Calibrated Linear Scale Factor of 10 mV/°C
• Rated for Full Temperature Range (–30° to 100°C)
• Suitable for Remote Applications
• UL Recognized Component
• ±2°C or ±3°C Accuracy at 25°C (Maximum)
• ±3°C Accuracy for –25°C to 85°C (Maximum)
• ±4°C Accuracy for –30°C to 100°C (Maximum)
• 10 mV/°C Temperature Slope (Maximum)
• 2.7-V to 10-V Power Supply Voltage Range
• 125-µA Current Drain at 25°C (Maximum)
• ±0.8°C Nonlinearity (Maximum)
• 800-Ω Output Impedance (Maximum)
Applications of LM61CIM3X
• Cellular Phones
• Computers
• Power Supply Modules
• Battery Management
• FAX Machines
• Printers
• HVAC
• Disk Drives
• Appliances
Environmental & Export Classifications of LM61CIM3X
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
