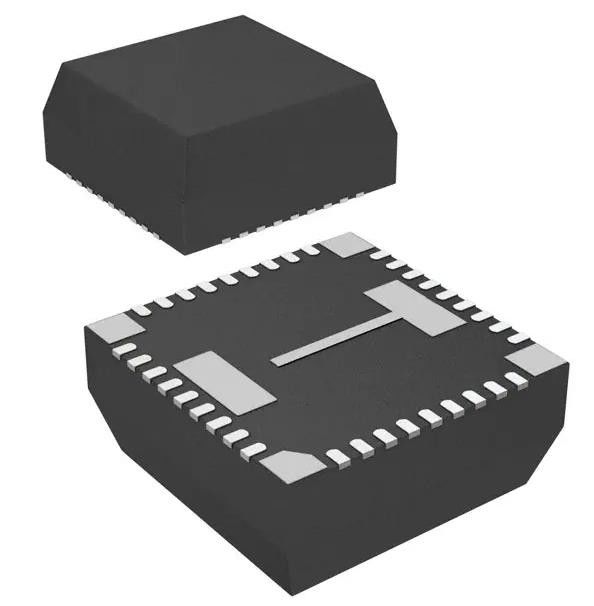

LMZ31710RVQR Non-Isolated PoL Module Converter 1 Output 0.6 ~ 5.5V 10A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMZ31710RVQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Non-Isolated PoL Module | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Output 1: | 0.6 ~ 5.5V | Voltage - Input (Min): | 2.95V |
| Voltage - Input (Max): | 17V | Applications: | ITE (Commercial) |
| Current - Output (Max): | 10A | Operating Temperature: | -40°C ~ 85°C |
Product Description
LMZ31710RVQR Non-Isolated PoL Module Converter 1 Output 0.6 ~ 5.5V 10A
Specifications of LMZ31710RVQR
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.95V |
| Voltage - Input (Max) | 17V |
| Voltage - Output 1 | 0.6 ~ 5.5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 10A |
| Applications | ITE (Commercial) |
| Features | OCP, OTP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Mounting Type | Surface Mount |
| Package / Case | 42-BQFN Module |
| Size / Dimension | 0.40" L x 0.40" W x 0.17" H (10.2mm x 10.2mm x 4.4mm) |
| Supplier Device Package | 42-B3QFN (10x10) |
| Control Features | Enable, Active High |
| Base Product Number | LMZ31710 |
Features of LMZ31710RVQR
• Complete integrated power solution allows small footprint, low-profile design
• 10-mm × 10-mm × 4.3-mm package
– Pin compatible with LMZ31710 and LMZ31704
• Efficiencies up to 95%
• Eco-mode™ / light load efficiency (LLE)
• Wide-output voltage adjust 0.6 V to 5.5 V, with 1% reference accuracy
• Supports parallel operation for higher current
• Optional split power rail allows input voltage down to 2.95 V
• Adjustable switching frequency (200 kHz to 1.2 MHz)
• Synchronizes to an external clock
• Provides 180° out-of-phase clock signal
• Adjustable slow start
• Output voltage sequencing / tracking
• Power good output
• Programmable undervoltage lockout (UVLO)
• Overcurrent and overtemperature protection
• Pre-Bias output start-up
• Operating temperature range: –40°C to +85°C
• Enhanced thermal performance: 13.3°C/W
• Meets EN55022 Class B emissions
– Integrated shielded inductor
• Create a custom design using the LMZ31707 with the WEBENCH® Power Designer
Applications of LMZ31710RVQR
• Broadband and communications infrastructure
• Automated test and medical equipment
• Compact PCI / PCI express / PXI express
• DSP and FPGA point-of-load applications
Environmental & Export Classifications of LMZ31710RVQR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8504.40.9580 |
