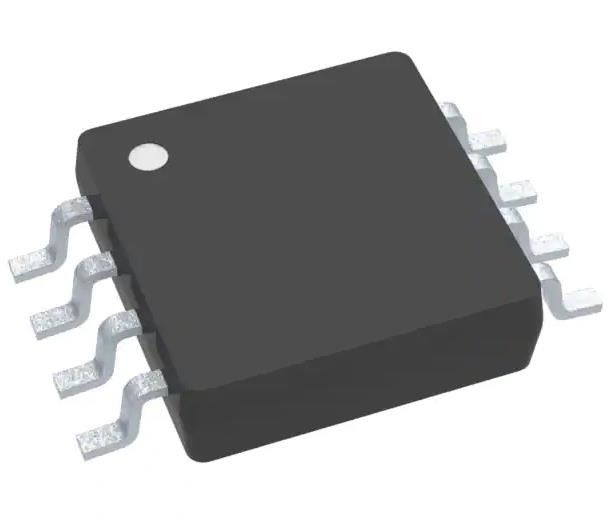

LM555CMM/NOPB 555 Type, Timer/Oscillator (Single) IC 100kHz 8-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM555CMM/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | 555 Type, Timer/Oscillator (Single) | Frequency: | 100kHz |
|---|---|---|---|
| Supplier Device Package: | 8-VSSOP | Count: | - |
| Current - Supply: | 10 MA | Package / Case: | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Voltage - Supply: | 4.5V ~ 16V | Operating Temperature: | 0°C ~ 70°C |
Product Description
LM555CMM/NOPB 555 Type, Timer/Oscillator (Single) IC 100kHz 8-VSSOP
Specifications of LM555CMM/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Programmable Timers and Oscillators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | 555 Type, Timer/Oscillator (Single) |
| Count | - |
| Frequency | 100kHz |
| Voltage - Supply | 4.5V ~ 16V |
| Current - Supply | 10 mA |
| Operating Temperature | 0°C ~ 70°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | LM555 |
Features of LM555CMM/NOPB
* Direct Replacement for SE555/NE555
* Timing from Microseconds through Hours
* Operates in Both Astable and Monostable Modes
* Adjustable Duty Cycle
* Output Can Source or Sink 200 mA
* Output and Supply TTL Compatible
* Temperature Stability Better than 0.005% per C
* Normally On and Normally Off Output
* Available in 8-pin VSSOP Package
Applications of LM555CMM/NOPB
• Precision Timing
• Pulse Generation
• Sequential Timing
• Time Delay Generation
• Pulse Width Modulation
• Pulse Position Modulation
• Linear Ramp Generator
Environmental & Export Classifications of LM555CMM/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
