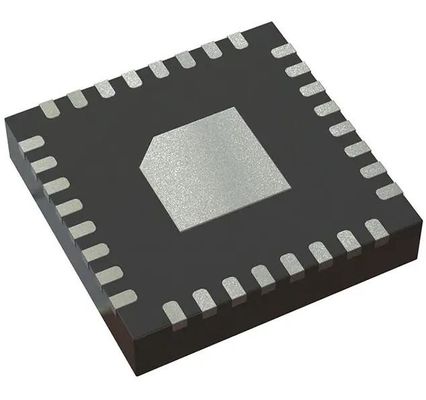

CDCM61004RHBR Clock Generator IC 683.27MHz 1 32-VFQFN Exposed Pad
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CDCM61004RHBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Clock Generator | PLL: | Yes With Bypass |
|---|---|---|---|
| Input: | LVCMOS, Crystal | Number Of Circuits: | 1 |
| Ratio - Input:Output: | 1:05 | Frequency - Max: | 683.27MHz |
| Voltage - Supply: | 3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C |
Product Description

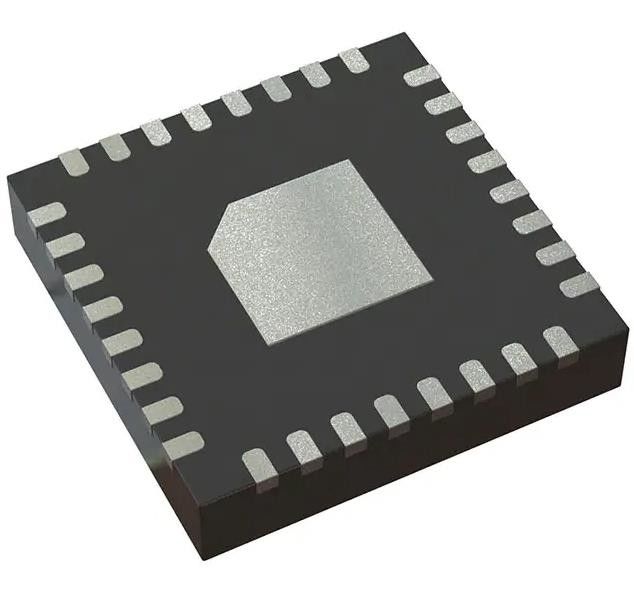

CDCM61004RHBR Clock Generator IC 683.27MHz 1 32-VFQFN Exposed Pad
Specifications of CDCM61004RHBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Clock Generator |
| PLL | Yes with Bypass |
| Input | LVCMOS, Crystal |
| Output | LVCMOS, LVDS, LVPECL |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:05 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 683.27MHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Base Product Number | CDCM61004 |
Features of CDCM61004RHBR
* One Crysta/LVCMOS Reference
* Input Including24.8832 MHz,25 MHz, and 26.5625 MHzlnput Frequency Range: 21.875 MHz to28.47 MHz
* On-Chip VCO Operates in Frequency Range of1.75 GHz to 2.05 GHz
* 4x Output Available:
- Pin-Selectable Between LVPECL, LVDS,or2-LVCMOS; Operates at 3.3 V
* LVCMOS Bypass
* Output AvailableOutput Frequency Selectable by 1, /2, /3, 14, /6./8 from a Single Output Divider
Applications of CDCM61004RHBR
• Low-Jitter Clock Driver for High-End Datacom Applications Including SONET, Ethernet, Fibre Channel, Serial ATA, and HDTV
• Cost-Effective High-Frequency Crystal Oscillator Replacement
Environmental & Export Classifications of CDCM61004RHBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
