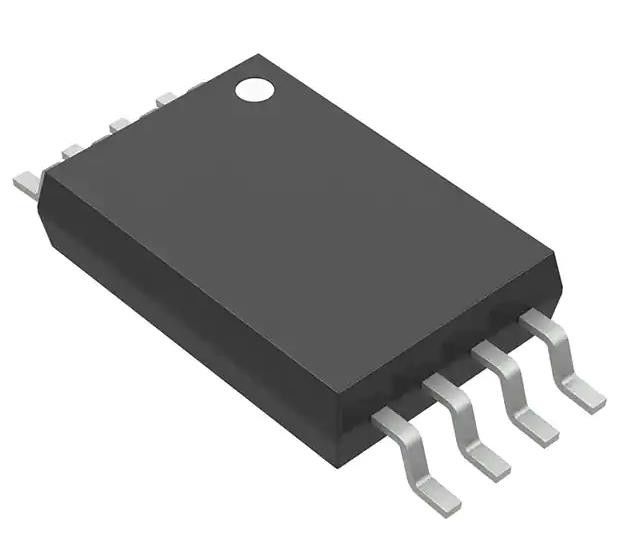

CDCLVC1104PWR Clock Fanout Buffer Electronic IC Chips 1:4 250 MHz 8-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CDCLVC1104PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Fanout Buffer (Distribution) | Number Of Circuits: | 1 |
|---|---|---|---|
| Ratio - Input:Output: | 1:04 | Differential - Input:Output: | No/No |
| Output: | LVCMOS | Frequency - Max: | 250 MHz |
| Voltage - Supply: | 2.3V ~ 3.6V | Operating Temperature: | -40°C ~ 85°C |
Product Description
CDCLVC1104PWR Clock Fanout Buffer Electronic IC Chips 1:4 250 MHz 8-TSSOP
Specifications of CDCLVC1104PWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Buffers, Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Fanout Buffer (Distribution) |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:04 |
| Differential - Input:Output | No/No |
| Input | LVCMOS |
| Output | LVCMOS |
| Frequency - Max | 250 MHz |
| Voltage - Supply | 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | CDCLVC1104 |
Features of CDCLVC1104PWR
• High-Performance 1:2, 1:3, 1:4, 1:6, 1:8, 1:10,1:12 LVCMOS Clock Buffer Family
• Very Low Pin-to-Pin Skew < 50 ps
• Very Low Additive Jitter < 100 fs
• Supply Voltage: 3.3 V or 2.5 V
• fmax = 250 MHz for 3.3 V fmax = 180 MHz for 2.5 V
• Operating Temperature Range: –40°C to 85°C
• Available in 8-, 14-, 16-, 20-, 24-Pin TSSOP Package (All Pin-Compatible)
Applications of CDCLVC1104PWR
General-Purpose Communication, Industrial, and Consumer Applications
Environmental & Export Classifications of CDCLVC1104PWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
