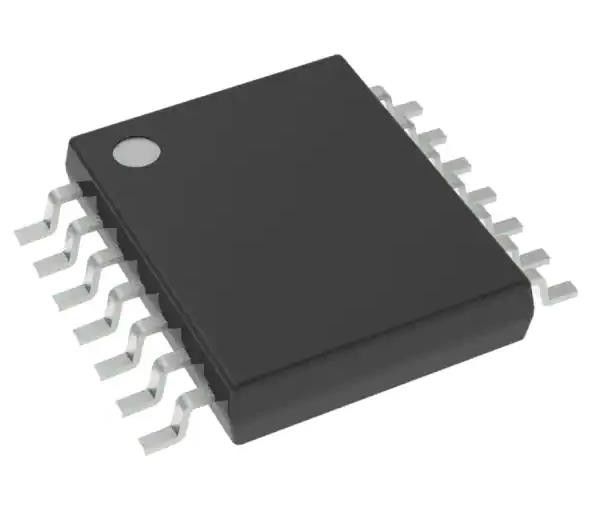

CDCE913PWR Spread Spectrum Clock Driver IC 230MHz 1 14-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CDCE913PWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Spread Spectrum Clock Driver | PLL: | Yes With Bypass |
|---|---|---|---|
| Input: | LVCMOS, Crystal | Output: | LVCMOS |
| Number Of Circuits: | 1 | Ratio - Input:Output: | 1:03 |
| Operating Temperature: | -40°C ~ 85°C | Package / Case: | 14-TSSOP (0.173", 4.40mm Width) |
Product Description
CDCE913PWR Spread Spectrum Clock Driver IC 230MHz 1 14-TSSOP
Specifications of CDCE913PWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Spread Spectrum Clock Driver |
| PLL | Yes with Bypass |
| Input | LVCMOS, Crystal |
| Output | LVCMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:03 |
| Differential - Input:Output | No/No |
| Frequency - Max | 230MHz |
| Divider/Multiplier | Yes/Yes |
| Voltage - Supply | 1.7V ~ 1.9V, 2.3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | CDCE913 |
Features of CDCE913PWR
• Member of Programmable Clock Generator Family
– CDCE913/CDCEL913: 1-PLL, 3 Outputs
– CDCE925/CDCEL925: 2-PLL, 5 Outputs
– CDCE937/CDCEL937: 3-PLL, 7 Outputs
– CDCE949/CDCEL949: 4-PLL, 9 Outputs
• In-System Programmability and EEPROM
– Serial Programmable Volatile Register
– Nonvolatile EEPROM to Store Customer Settings
• Flexible Input Clocking Concept
– External Crystal: 8 MHz to 32 MHz
– On-Chip VCXO: Pull Range ±150 ppm
– Single-Ended LVCMOS Up to 160 MHz
• Free Selectable Output Frequency Up to 230 MHz
Applications of CDCE913PWR
D-TVs, STBs, IP-STBs, DVD Players, DVD Recorders, and Printers
Environmental & Export Classifications of CDCE913PWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
