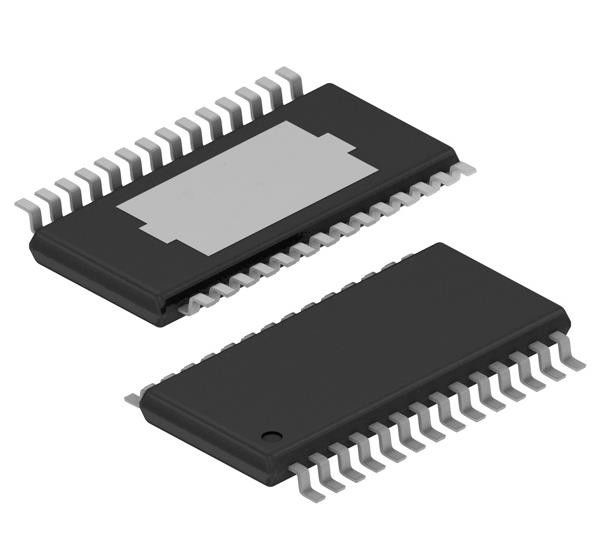

TPA3110D2PWPR Amplifier Electronic IC Chips 2-Channel (Stereo) Class D 28-HTSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPA3110D2PWPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Differential Inputs, Short-Circuit And Thermal Protection, Shutdown | Type: | Class D |
|---|---|---|---|
| Output Type: | 2-Channel (Stereo) | Max Output Power X Channels @ Load: | 15W X 2 @ 8Ohm |
| Voltage - Supply: | 8V ~ 26V | Mounting Type: | Surface Mount |
| Operating Temperature: | -40°C ~ 85°C (TA) | Package / Case: | 28-PowerTSSOP (0.173", 4.40mm Width) |
Product Description
TPA3110D2PWPR Amplifier Electronic IC Chips 2-Channel (Stereo) Class D 28-HTSSOP
Specifications of TPA3110D2PWPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Texas Instruments |
| Series | SpeakerGuard™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Class D |
| Output Type | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 15W x 2 @ 8Ohm |
| Voltage - Supply | 8V ~ 26V |
| Features | Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 28-HTSSOP |
| Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Base Product Number | TPA3110 |
Features of TPA3110D2PWPR
• 15-W/ch into an 8-Ω Loads at 10% THD+N From a 16-V Supply
• 10-W/ch into 8-Ω Loads at 10% THD+N From a 13-V Supply
• 30-W into a 4-Ω Mono Load at 10% THD+N From a 16-V Supply
• 90% Efficient Class-D Operation Eliminates Need for Heat Sinks
• Wide Supply Voltage Range Allows Operation From 8 V to 26 V
• Filter-Free Operation
• SpeakerGuard™ Speaker Protection Includes Adjustable Power Limiter Plus DC Protection
• Flow Through Pin Out Facilitates Easy Board Layout
• Robust Pin-to-Pin Short Circuit Protection and Thermal Protection With Auto Recovery Option
• Excellent THD+N / Pop-Free Performance
• Four Selectable, Fixed Gain Settings
• Differential Inputs
Applications of TPA3110D2PWPR
• Televisions
• Consumer Audio Equipment
Environmental & Export Classifications of TPA3110D2PWPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
