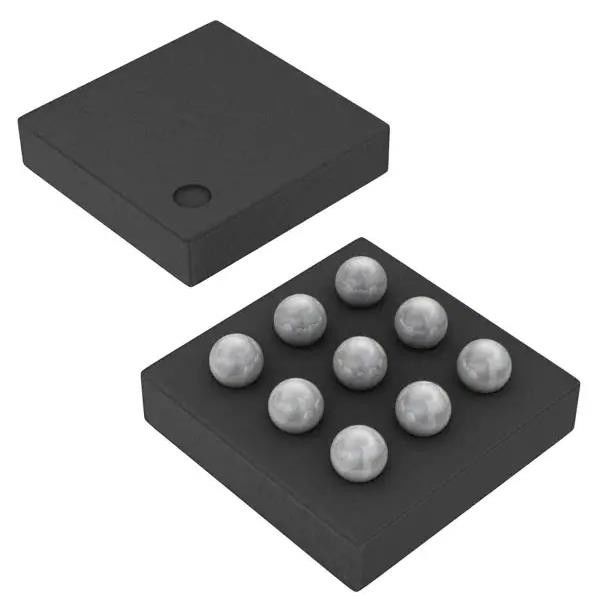

TPA2011D1YFFR Amplifier Electronic IC Chips 1-Channel (Mono) Class D 9-DSBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPA2011D1YFFR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Differential Inputs, Short-Circuit And Thermal Protection, Shutdown | Type: | Class D |
|---|---|---|---|
| Output Type: | 1-Channel (Mono) | Max Output Power X Channels @ Load: | 3.24W X 1 @ 4Ohm |
| Voltage - Supply: | 2.5V ~ 5.5V | Mounting Type: | Surface Mount |
| Operating Temperature: | -40°C ~ 85°C (TA) | Package / Case: | 9-UFBGA, DSBGA |
Product Description
TPA2011D1YFFR Amplifier Electronic IC Chips 1-Channel (Mono) Class D 9-DSBGA
Specifications of TPA2011D1YFFR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Class D |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 3.24W x 1 @ 4Ohm |
| Voltage - Supply | 2.5V ~ 5.5V |
| Features | Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 9-DSBGA |
| Package / Case | 9-UFBGA, DSBGA |
| Base Product Number | TPA2011 |
Features of TPA2011D1YFFR
* Powerful Mono Class-D Amplifier
- 3.24 W (4 , 5 V, 10% THDN)
- 2.57 W (4 Q, 5 V, 1% THDN)
- 1.80 W (8 Q, 5 V, 10% THDN)
- 1.46 W (8 Q, 5 V, 1% THDN)
* Integrated Feedback Resistor of 300 kQ
* Integrated lmage Reject Filter for DAC NoiseReduction
* Low Output Noise of 20 pV
* Low Quiescent Current of 1.5 mA
* Auto Recovering Short-Circuit Protection
* Thermal Overload Protection
* 9-Ball, 1.21mm x 1.16 mm 0.4 mm Pitch DSBGA
Applications of TPA2011D1YFFR
• Wireless or Cellular Handsets and PDAs
• Portable Navigation Devices
• General Portable Audio Devices
Environmental & Export Classifications of TPA2011D1YFFR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
