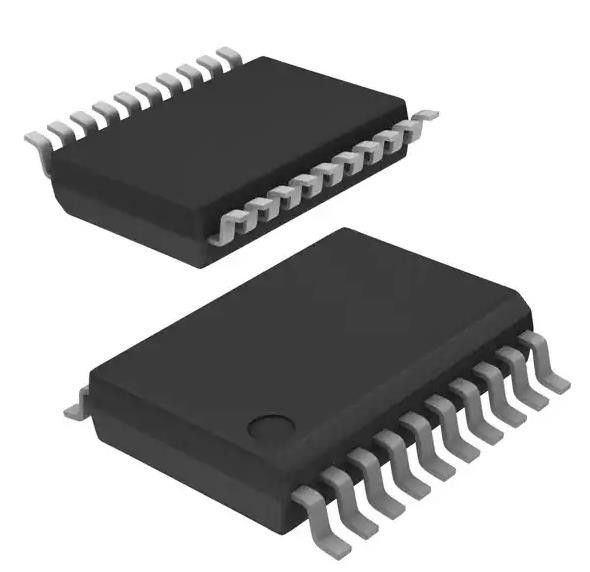

PCM1803ADBR ADC, Audio 24 b 96k Serial 20-SSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PCM1803ADBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | ADC, Audio | Number Of Channels: | 2 |
|---|---|---|---|
| Resolution (Bits): | 24 B | Sampling Rate (Per Second): | 96k |
| Data Interface: | Serial | Voltage Supply Source: | Analog And Digital |
| Voltage - Supply: | 2.7V ~ 3.6V, 4.5V ~ 5.5V | Operating Temperature: | -40°C ~ 85°C |
Product Description
OPA1622IDRCR Audio Amplifier 2 Circuit 10-VSON (3x3)
Specifications of PCM1803ADBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| ADCs/DACs - Special Purpose | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | ADC, Audio |
| Number of Channels | 2 |
| Resolution (Bits) | 24 b |
| Sampling Rate (Per Second) | 96k |
| Data Interface | Serial |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 2.7V ~ 3.6V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) |
| Supplier Device Package | 20-SSOP |
| Base Product Number | PCM1803 |
Features of PCM1803ADBR
• 24-Bit Delta-Sigma Stereo A/D Converter
• Single-Ended Voltage Input: 3 Vp-p
• Oversampling Decimation Filter:
– Oversampling Frequency: ×64, ×128
– Pass-Band Ripple: ±0.05 dB
– Stop-Band Attenuation: –65 dB
– On-Chip High-Pass Filter: 0.84 Hz (44.1 kHz)
• High-Performance:
– THD+N: –95 dB (Typically)
– SNR: 103 dB (Typically)
– Dynamic Range: 103 dB (Typically)
• PCM Audio Interface:
– Master or Slave Mode Selectable
– Data Formats:
– 24-Bit Left-Justified
– 24-Bit I2S
– 20-, 24-Bit Right-Justified
• Sampling Rate: 16 kHz to 96 kHz
• System Clock: 256 fS, 384 fS, 512 fS, 768 fS
• Dual Power Supplies: 5 V for Analog, 3.3 V for Digital
• Package: 20-Pin SSOP
Applications of PCM1803ADBR
• AV Amplifier Receivers
• MD Players
• CD Recorders
• Multitrack Receivers
• Electric Musical Instruments
Environmental & Export Classifications of PCM1803ADBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
