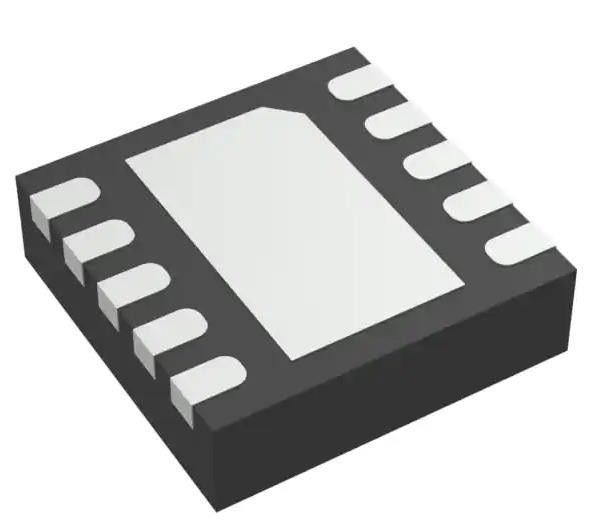

OPA1622IDRCR Audio Amplifier 2 Circuit 10-VSON (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | OPA1622IDRCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | Audio | Number Of Circuits: | 2 |
|---|---|---|---|
| Slew Rate: | 10V/µs | Gain Bandwidth Product: | 32 MHz |
| Current - Input Bias: | 1.2 µA | Voltage - Input Offset: | 100 µV |
| Current - Supply: | 2.6mA (x2 Channels) | Current - Output / Channel: | 145 MA |
Product Description
OPA1622IDRCR Audio Amplifier 2 Circuit 10-VSON (3x3)
Specifications of OPA1622IDRCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | Texas Instruments |
| Series | SoundPlus™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Amplifier Type | Audio |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | 10V/µs |
| Gain Bandwidth Product | 32 MHz |
| Current - Input Bias | 1.2 µA |
| Voltage - Input Offset | 100 µV |
| Current - Supply | 2.6mA (x2 Channels) |
| Current - Output / Channel | 145 mA |
| Voltage - Supply Span (Min) | 4 V |
| Voltage - Supply Span (Max) | 36 V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad |
| Supplier Device Package | 10-VSON (3x3) |
| Base Product Number | OPA1622 |
Features of OPA1622IDRCR
1• Supports Multiple Output Configurations
– 2 × 50 W Into a 4-Ω BTL Load at 21 V (TPA3116D2)
– 2 × 30 W Into a 8-Ω BTL Load at 24 V (TPA3118D2)
– 2 × 15 W Into a 8-Ω BTL Load at 15 V (TPA3130D2)
• Wide Voltage Range: 4.5 V to 26 V
• Efficient Class-D Operation
– >90% Power Efficiency Combined With Low Idle Loss Greatly Reduces Heat Sink Size
– Advanced Modulation Schemes
• Multiple Switching Frequencies
– AM Avoidance
– Master and Slave Synchronization
– Up to 1.2-MHz Switching Frequency
• Feedback Power-Stage Architecture With High PSRR Reduces PSU Requirements
• Programmable Power Limit
• Differential and Single-Ended Inputs
• Stereo and Mono Mode With Single-Filter Mono Configuration
• Single Power Supply Reduces Component Count
• Integrated Self-Protection Circuits Including Overvoltage, Undervoltage, Overtemperature, DCDetect, and Short Circuit With Error Reporting
• Thermally Enhanced Packages
– DAD (32-Pin HTSSOP Pad Up)
– DAP (32-Pin HTSSOP Pad Down)
• –40°C to 85°C Ambient Temperature Range
Applications of OPA1622IDRCR
• High-Fidelity (HiFi) Headphone Drivers
• Professional Audio Equipment
• Analog and Digital Mixing Consoles
• Audio Test and Measurement
• High-End Blu-ray™ Players
• High-End Audio and Video (A/V) Receivers
Environmental & Export Classifications of OPA1622IDRCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
