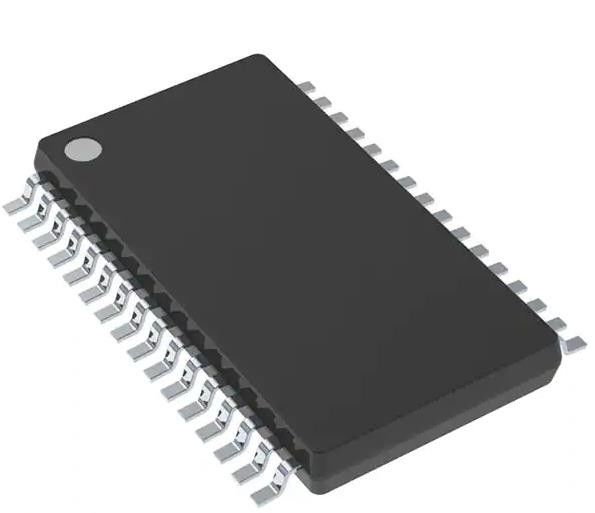

TPA3118D2DAPR Amplifier IC 2-Channel (Stereo) Class D 32-HTSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPA3118D2DAPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Differential Inputs, Mute, Short-Circuit And Thermal Protection, Shutdown | Type: | Class D |
|---|---|---|---|
| Output Type: | 2-Channel (Stereo) | Max Output Power X Channels @ Load: | 30W X 2 @ 8Ohm |
| Voltage - Supply: | 4.5V ~ 26V | Mounting Type: | Surface Mount |
| Operating Temperature: | -40°C ~ 85°C (TA) | Supplier Device Package: | 32-HTSSOP |
Product Description
TPA3118D2DAPR Amplifier IC 2-Channel (Stereo) Class D 32-HTSSOP
Specifications of TPA3118D2DAPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Texas Instruments |
| Series | SpeakerGuard™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Class D |
| Output Type | 2-Channel (Stereo) |
| Max Output Power x Channels @ Load | 30W x 2 @ 8Ohm |
| Voltage - Supply | 4.5V ~ 26V |
| Features | Differential Inputs, Mute, Short-Circuit and Thermal Protection, Shutdown |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Supplier Device Package | 32-HTSSOP |
| Package / Case | 32-PowerTSSOP (0.240", 6.10mm Width) |
| Base Product Number | TPA3118 |
Features of PCM5100APWR
1• Supports Multiple Output Configurations
– 2 × 50 W Into a 4-Ω BTL Load at 21 V (TPA3116D2)
– 2 × 30 W Into a 8-Ω BTL Load at 24 V (TPA3118D2)
– 2 × 15 W Into a 8-Ω BTL Load at 15 V (TPA3130D2)
• Wide Voltage Range: 4.5 V to 26 V
• Efficient Class-D Operation
– >90% Power Efficiency Combined With Low Idle Loss Greatly Reduces Heat Sink Size
– Advanced Modulation Schemes
• Multiple Switching Frequencies
– AM Avoidance
– Master and Slave Synchronization
– Up to 1.2-MHz Switching Frequency
• Feedback Power-Stage Architecture With High PSRR Reduces PSU Requirements
• Programmable Power Limit
• Differential and Single-Ended Inputs
• Stereo and Mono Mode With Single-Filter Mono Configuration
• Single Power Supply Reduces Component Count
• Integrated Self-Protection Circuits Including Overvoltage, Undervoltage, Overtemperature, DCDetect, and Short Circuit With Error Reporting
• Thermally Enhanced Packages
– DAD (32-Pin HTSSOP Pad Up)
– DAP (32-Pin HTSSOP Pad Down)
• –40°C to 85°C Ambient Temperature Range
Applications of TPA3118D2DAPR
• Mini-Micro Component, Speaker Bar, Docks
• After-Market Automotive
• CRT TV
• Consumer Audio Applications
Environmental & Export Classifications of TPA3118D2DAPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
