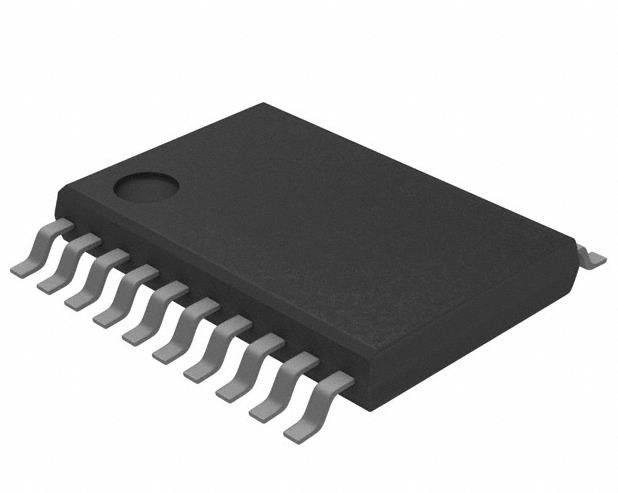

PCM5100APWR DAC, Audio 16 b, 24 b, 32 b 384k PCM 20-TSSOP DirectPath™
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PCM5100APWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | DAC, Audio | Number Of Channels: | 2 |
|---|---|---|---|
| Resolution (Bits): | 16 B, 24 B, 32 B | Sampling Rate (Per Second): | 384k |
| Data Interface: | PCM | Voltage Supply Source: | Analog And Digital |
| Voltage - Supply: | 1.65V ~ 3.46V | Operating Temperature: | -25°C ~ 85°C |
Product Description
PCM5100APWR DAC, Audio 16 b, 24 b, 32 b 384k PCM 20-TSSOP DirectPath™
Specifications of PCM5100APWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| ADCs/DACs - Special Purpose | |
| Mfr | Texas Instruments |
| Series | DirectPath™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | DAC, Audio |
| Number of Channels | 2 |
| Resolution (Bits) | 16 b, 24 b, 32 b |
| Sampling Rate (Per Second) | 384k |
| Data Interface | PCM |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 1.65V ~ 3.46V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| Base Product Number | PCM5100 |
Features of PCM5100APWR
* Ultra Low Out-of-Band Noise
* Integrated High-Performance Audio PLL with BCKReference to Generate SCK Internally
* Direct Line Level 2.1-VRMs Output
* No DC Blocking Capacitors Required
* Line Level Output Down to 1KQ
* Intelligent Muting System; Soft Up or Down Rampand Analog Mute For 120-dB Mute SNR
* Accepts 16-, 24-, and 32-Bit Audio Data
* PCM Data Formats: 12S, Left-Justified
* Automatic Power-Save Mode When LRCK AndBCK Are Deactivated
* 1.8 V or 3.3 V Failsafe LVCMOS Digital Inputs
* Simple Configuration Using Hardware Pins
* Single-Supply Operation: 14
- 3.3 V Analog, 1.8 V or 3.3 V Digital
* Qualified in Accordance with AEC-Q100
Applications of PCM5100APWR
• A/V Receivers, DVD, BD Players
• Automotive Infotainment and Telematics
• HDTV Receivers
• Aftermarket Automotive Amplifiers
Environmental & Export Classifications of PCM5100APWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
