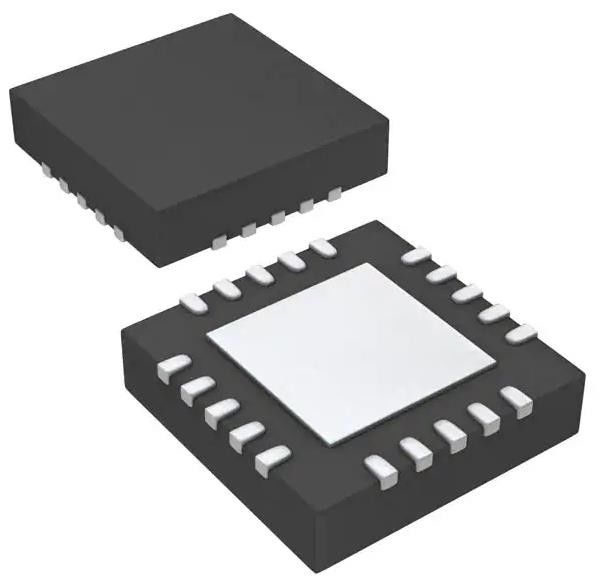

CC2500RGPR IC RF TxRx Only General ISM > 1GHz 2.4GHz 20-VFQFN Exposed Pad
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CC2500RGPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | TxRx Only | RF Family/Standard: | General ISM > 1GHz |
|---|---|---|---|
| Modulation: | 2FSK, GFSK, MSK, OOK | Frequency: | 2.4GHz |
| Data Rate (Max): | 500kBaud | Power - Output: | 1dBm |
| Sensitivity: | -104dBm | Voltage - Supply: | 1.8V ~ 3.6V |
Product Description
CC2500RGPR IC RF TxRx Only General ISM > 1GHz 2.4GHz 20-VFQFN Exposed Pad
Specifications of CC2500RGPR
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | TxRx Only |
| RF Family/Standard | General ISM > 1GHz |
| Protocol | - |
| Modulation | 2FSK, GFSK, MSK, OOK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 500kBaud |
| Power - Output | 1dBm |
| Sensitivity | -104dBm |
| Memory Size | - |
| Serial Interfaces | SPI |
| Voltage - Supply | 1.8V ~ 3.6V |
| Current - Receiving | 13.3mA ~ 19.6mA |
| Current - Transmitting | 11.1mA ~ 21.5mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| Base Product Number | CC2500 |
Features of CC2500RGPR
* High sensitivity (–104 dBm at 2.4 kBaud, 1% packet error rate)
* Low current consumption (13.3 mA in RX,250 kBaud, input well above sensitivity limit)
* Programmable output power up to +1 dBm
* Excellent receiver selectivity and blocking performance
* Programmable data rate from 1.2 to 500 kBaud
* Frequency range: 2400 – 2483.5 MHz
Applications of CC2500RGPR
* 2400-2483.5 MHz ISM/SRD band systems
* Consumer electronics
* Wireless game controllers
Environmental & Export Classifications of CC2500RGPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991G |
| HTSUS | 8542.39.0001 |
