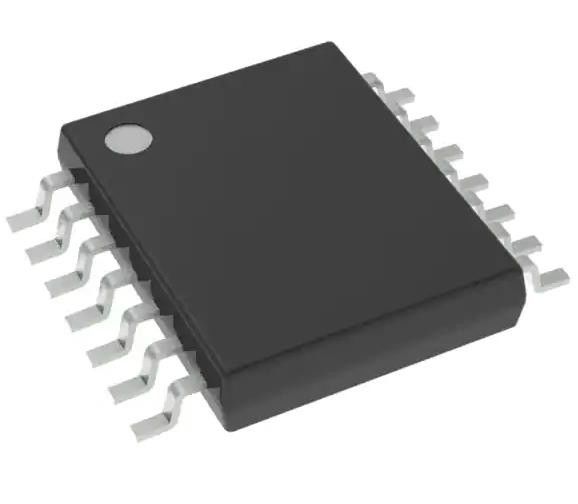

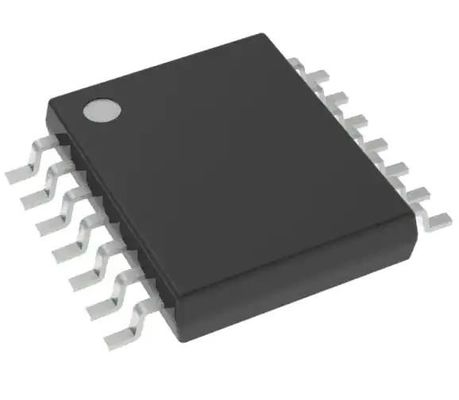

TLC2932IPWR Phase Lock Loop (PLL) IC 50MHz 1 14-TSSOP (0.173", 4.40mm Width)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLC2932IPWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | Phase Lock Loop (PLL) | PLL: | Yes |
|---|---|---|---|
| Input: | CMOS | Number Of Circuits: | 1 |
| Ratio - Input:Output: | 2:01 | Differential - Input:Output: | No/No |
| Frequency - Max: | 50MHz | Voltage - Supply: | 2.85V ~ 5.25V |
Product Description
TLC2932IPWR Phase Lock Loop (PLL) IC 50MHz 1 14-TSSOP (0.173", 4.40mm Width)
Specifications of TLC2932IPWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Clock/Timing | |
| Clock Generators, PLLs, Frequency Synthesizers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Phase Lock Loop (PLL) |
| PLL | Yes |
| Input | CMOS |
| Output | CMOS |
| Number of Circuits | 1 |
| Ratio - Input:Output | 2:01 |
| Differential - Input:Output | No/No |
| Frequency - Max | 50MHz |
| Divider/Multiplier | Yes/Yes |
| Voltage - Supply | 2.85V ~ 5.25V |
| Operating Temperature | -20°C ~ 75°C |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 14-TSSOP |
| Base Product Number | TLC293 |
Features of TLC2932IPWR
* Voltage-Controlled Oscillator (VCO)
Section:
– Complete Oscillator Using Only One External Bias Resistor (RBIAS)
– Lock Frequency:
- 22 MHz to 50 MHz (VDD = 5 V ±5%,
- TA = –20°C to 75°C, ×1 Output)
- 11 MHz to 25 MHz (VDD = 5 V ±5%,
- TA = –20°C to 75°C, ×1/2 Output)
– Output Frequency . . . ×1 and ×1/2 Selectable
Applications of TLC2932IPWR
The TLC2932 is designed for phase-locked-loop (PLL) systems and is composed of a voltage-controlled oscillator (VCO) and an edge-triggered-type phase frequency detecto (PFD).
