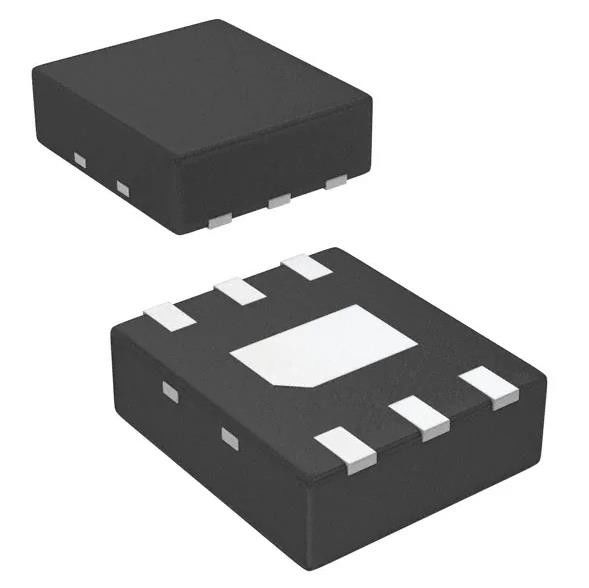

LMV225SD/NOPB RF Detector IC Cellular W-CDMA 450MHz ~ 2GHz -30dBm ~ 0dBm ±1dB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMV225SD/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Frequency: | 450MHz ~ 2GHz | RF Type: | Cellular, CDMA, CDMA2000, EDGE, GSM, GPRS, TDMA, W-CDMA |
|---|---|---|---|
| Input Range: | -30dBm ~ 0dBm | Accuracy: | ±1dB |
| Voltage - Supply: | 2.7V ~ 5V | Current - Supply: | 8 MA |
Product Description
LMV225SD/NOPB RF Detector IC Cellular W-CDMA 450MHz ~ 2GHz -30dBm ~ 0dBm ±1dB
Specifications of LMV225SD/NOPB
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Detectors | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Frequency | 450MHz ~ 2GHz |
| RF Type | Cellular, CDMA, CDMA2000, EDGE, GSM, GPRS, TDMA, W-CDMA |
| Input Range | -30dBm ~ 0dBm |
| Accuracy | ±1dB |
| Voltage - Supply | 2.7V ~ 5V |
| Current - Supply | 8 mA |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-WSON (2.2x2.5) |
| Base Product Number | LMV225 |
Features of LMV225SD/NOPB
* 30 dB Linear in dB Power Detection Range
* Output Voltage Range 0.2 to 2V
* Logic Low Shutdown
* Multi-Band Operation from 450 MHz to 2000MHz
* Accurate Temperature Compensation
* Packages:
- DSBGA Thin 1.0 mm x 1.0 mm x 0.6 mm
- DSBGA Ultra Thin 1.0 mm x 1.0 mm x 0.35mm
- WSON 2.2 mm x 2.5 mm x 0.8 mm
- (LMV225 and LMV228)
Applications of LMV225SD/NOPB
• CDMA RF Power Control
• WCDMA RF Power Control
• CDMA2000 RF Power Control
• PA Modules
Environmental & Export Classifications of LMV225SD/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
