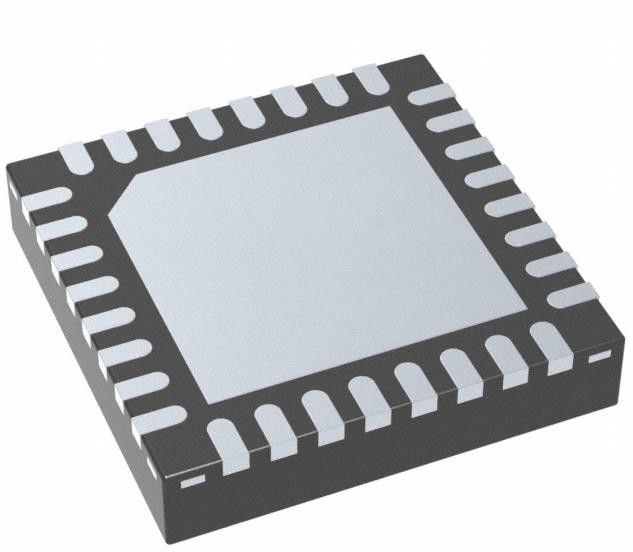

CC2640F128RSMR IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 32-VFQFN
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CC2640F128RSMR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | TxRx + MCU | RF Family/Standard: | Bluetooth |
|---|---|---|---|
| Protocol: | Bluetooth V4.1 | Modulation: | DSSS, O-QPSK, GFSK |
| Frequency: | 2.4GHz | Data Rate (Max): | 1Mbps |
| Power - Output: | 5dBm | Sensitivity: | -97dBm |
| Memory Size: | 128kB Flash, 28kB SRAM | GPIO: | 10 |
Product Description
CC2640F128RSMR IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 32-VFQFN
Specifications of CC2640F128RSMR
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Texas Instruments |
| Series | SimpleLink™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.1 |
| Modulation | DSSS, O-QPSK, GFSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 1Mbps |
| Power - Output | 5dBm |
| Sensitivity | -97dBm |
| Memory Size | 128kB Flash, 28kB SRAM |
| Serial Interfaces | I²C, I²S, JTAG, SPI, UART |
| GPIO | 10 |
| Voltage - Supply | 1.8V ~ 3.8V |
| Current - Receiving | 5.9mA ~ 6.1mA |
| Current - Transmitting | 6.1mA ~ 9.1mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (4x4) |
| Base Product Number | CC2640 |
Features of CC2640F128RSMR
• Microcontroller
– Powerful ARM® Cortex®
-M3
– EEMBC CoreMark® Score: 142
– Up to 48-MHz Clock Speed
– 128KB of In-System Programmable Flash
– 8KB of SRAM for Cache
– 20KB of Ultralow-Leakage SRAM
– 2-Pin cJTAG and JTAG Debugging
– Supports Over-The-Air Upgrade (OTA)
• Ultralow-Power Sensor Controller
– Can Run Autonomous From the Rest of the System
– 16-Bit Architecture
– 2KB of Ultralow-Leakage SRAM for Code and Data
• Efficient Code Size Architecture, Placing Drivers,Bluetooth® Low Energy Controller, and Bootloader in ROM
Applications of CC2640F128RSMR
• Retail
– Beacons
– Advertising
– ESL and Price Tags
– Point of Sales and Payment Systems
• Health and Medical
– Thermometers
– SpO2
– Blood Glucose and Pressure Meters
– Weight Scales
– Vitals Monitoring
– Hearing Aids
• Sports and Fitness
– Activity Monitors and Fitness Trackers
– Heart Rate Monitors
– Running Sensors
– Biking Sensors
– Sports Watches
– Gym Equipment
– Team Sports Equipment
• HID
– Remote Controls
– Keyboards and Mice
– Gaming
• Accessories
– Toys
– Trackers
– Luggage Tags
– Wearables
Environmental & Export Classifications of CC2640F128RSMR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
