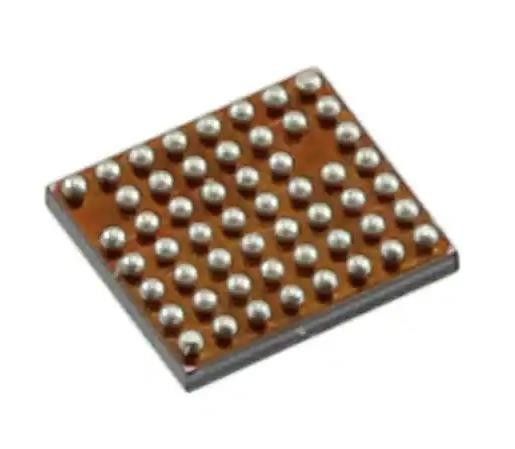

CC2564BYFVR IC RF TxRx Only Bluetooth Bluetooth v4.1 2.4GHz 54-UFBGA, DSBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CC2564BYFVR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Type: | TxRx Only | RF Family/Standard: | Bluetooth |
|---|---|---|---|
| Protocol: | Bluetooth V4.1 | Modulation: | GFSK, GMSK |
| Frequency: | 2.4GHz | Data Rate (Max): | 4Mbps |
| Power - Output: | 12dBm | Sensitivity: | -95dBm |
| Serial Interfaces: | I²S, UART | Voltage - Supply: | 2.2V ~ 4.8V |
Product Description
CC2564BYFVR IC RF TxRx Only Bluetooth Bluetooth v4.1 2.4GHz 54-UFBGA, DSBGA
Specifications of CC2564BYFVR
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Transceiver ICs | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | TxRx Only |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.1 |
| Modulation | GFSK, GMSK |
| Frequency | 2.4GHz |
| Data Rate (Max) | 4Mbps |
| Power - Output | 12dBm |
| Sensitivity | -95dBm |
| Memory Size | - |
| Serial Interfaces | I²S, UART |
| Voltage - Supply | 2.2V ~ 4.8V |
| Current - Receiving | 40.5mA ~ 41.2mA |
| Current - Transmitting | 40.5mA ~ 41.2mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 54-UFBGA, DSBGA |
| Supplier Device Package | 54-DSBGA (2.93x3.27) |
| Base Product Number | CC2564 |
Features of CC2564BYFVR
* Single-Chip B/uetooth Solution IntegratingB/uetooth Basic Rate (BR)/Enhanced Data Rate(EDR)/Low Energy (LE) Features FullyCompliant With the B/uetooth 4.0 SpecificationUp to the HCI Layer
* BR/EDR Features Include:- Up to 7 Active Devices Scatternet: Up to 3 Piconets Simultaneously.1 as Master and 2 as Slaves- Up to 2 SCO Links on the Same PiconetSupport for All Voice Air-Coding -Continuously Variable Slope Delta (CVSD)A-Law, u-Law, and Transparent (Uncoded)
Applications of CC2564BYFVR
• Mobile phone accessories
• Remote controls
• Sports and fitness applications
• Toys
• Wireless audio solutions
Environmental & Export Classifications of CC2564BYFVR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
