CC115LRGPR RF Transmitter FSK GFSK OOK 315MHz 433MHz 868MHz 915MHz 12dBm 600kbps
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | CC115LRGPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Frequency: | 315MHz, 433MHz, 868MHz, 915MHz | Applications: | ISM, SRD |
|---|---|---|---|
| Modulation Or Protocol: | FSK, GFSK, OOK | Data Rate (Max): | 600kbps |
| Power - Output: | 12dBm | Current - Transmitting: | 34.2mA |
| Data Interface: | PCB, Surface Mount | Voltage - Supply: | 1.8V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C | Supplier Device Package: | 20-QFN (4x4) |
Product Description
CC115LRGPR RF Transmitter FSK GFSK OOK 315MHz 433MHz 868MHz 915MHz 12dBm 600kbps
Specifications of CC115LRGPR
| TYPE | DESCRIPTION |
| Category | RF and Wireless |
| RF Transmitters | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Frequency | 315MHz, 433MHz, 868MHz, 915MHz |
| Applications | ISM, SRD |
| Modulation or Protocol | FSK, GFSK, OOK |
| Data Rate (Max) | 600kbps |
| Power - Output | 12dBm |
| Current - Transmitting | 34.2mA |
| Data Interface | PCB, Surface Mount |
| Antenna Connector | PCB, Surface Mount |
| Memory Size | - |
| Features | - |
| Voltage - Supply | 1.8V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |

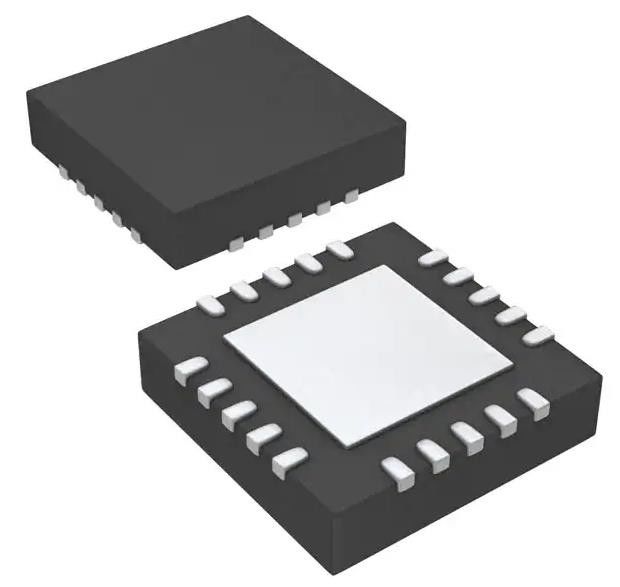

| Package / Case | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (4x4) |
| Base Product Number | CC115 |
Features of CC115LRGPR
* RF Performance
- Programmable Output Power up to +12 dBm
- Programmable Data Rate from 0.6 to 600 kbps
- Frequency Bands: 300-348 MHz,387-464 MHz,and 779-928 MHZ
- 2-FSK, 4-FSK, GFSK, and OOK Supported
* Digital Features
- Flexible Support for Packet Oriented Systems
- On-chip Support for Sync Word Insertion,Flexible Packet Length, and Automatic CRCCalculation
* Low-Power Features
- 200-nA Sleep Mode Current Consumption
- Fast Startup Time; 240 us From Sleep to TXMode
- 64-Byte TX FIFO
Applications of CC115LRGPR
* Ultra Low-Power Wireless Applications Operatingin the 315-, 433-, 868-. 915-MHZ ISM or SRDBands
* Wireless Alarm and Security Systems
* Industrial Monitoring and Control
* Remote Controls
* Toys
* Home and Building Automation
* Active RFID
Environmental & Export Classifications of CC115LRGPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991G |
| HTSUS | 8542.39.0001 |
